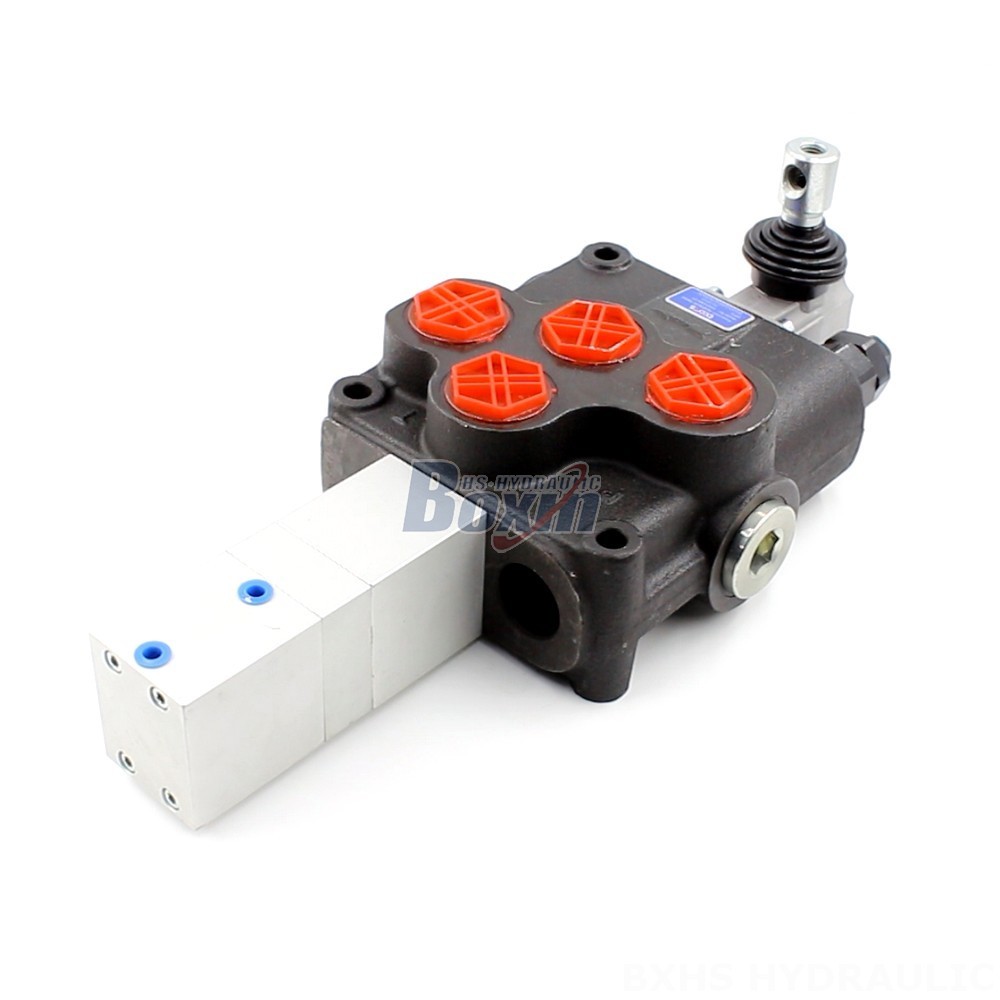

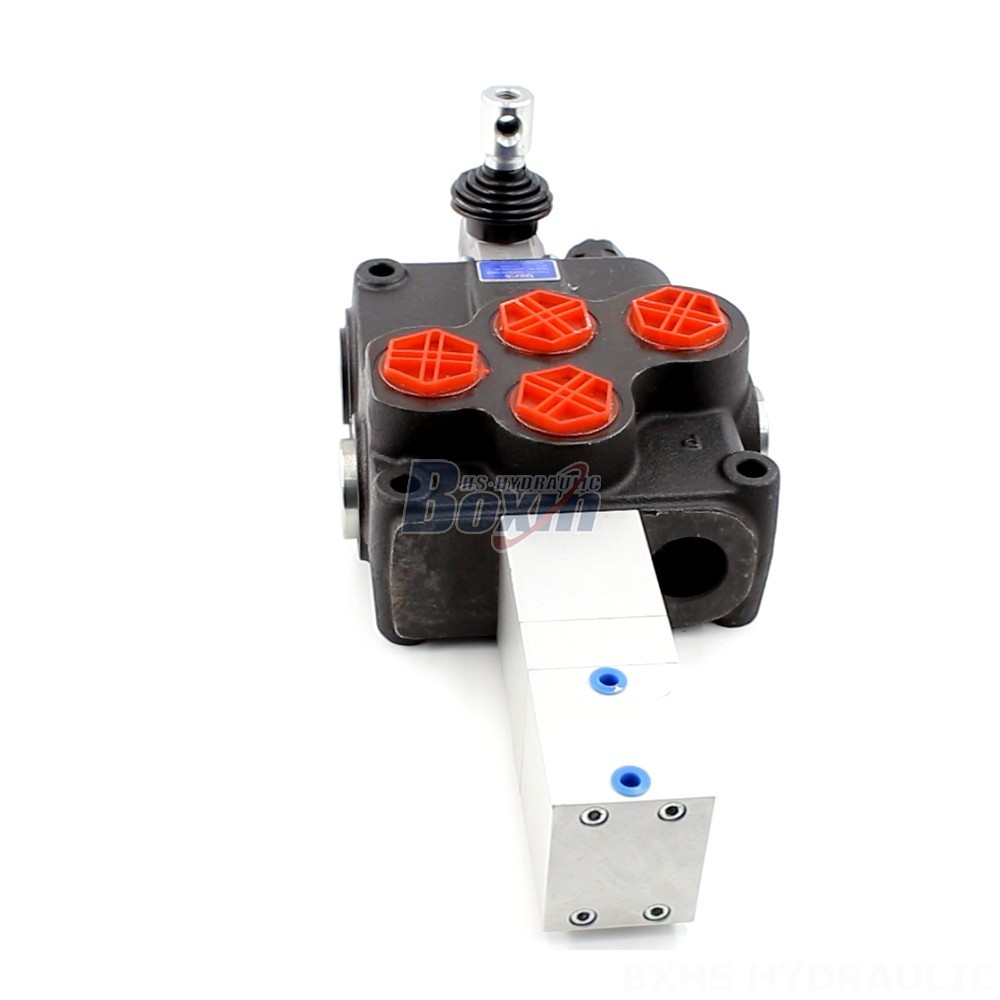

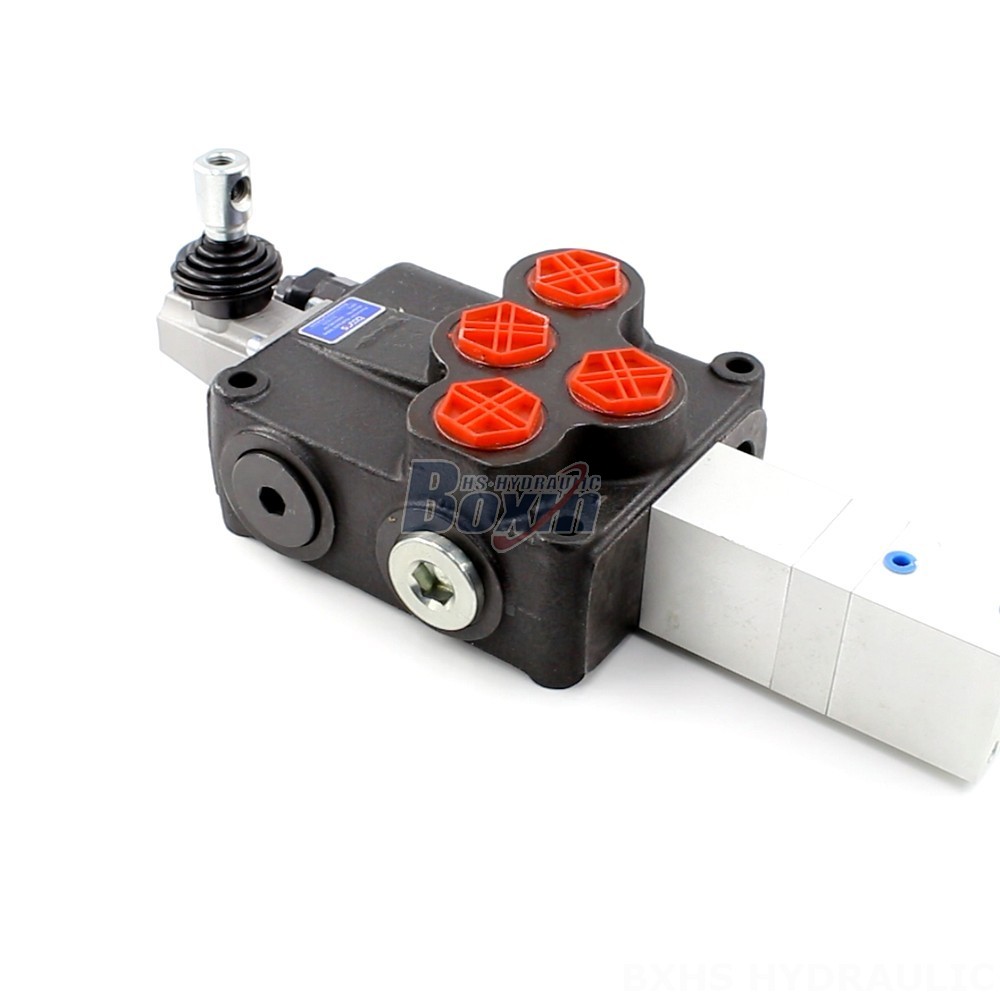

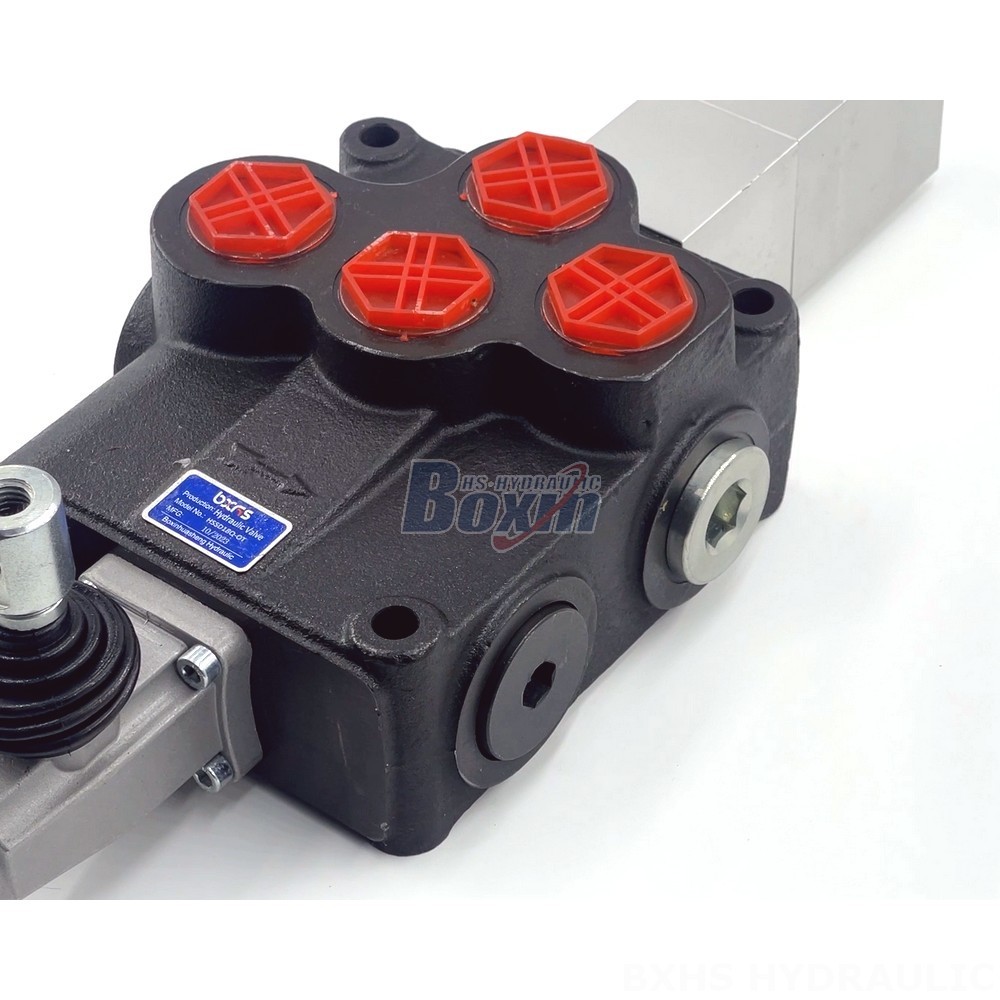

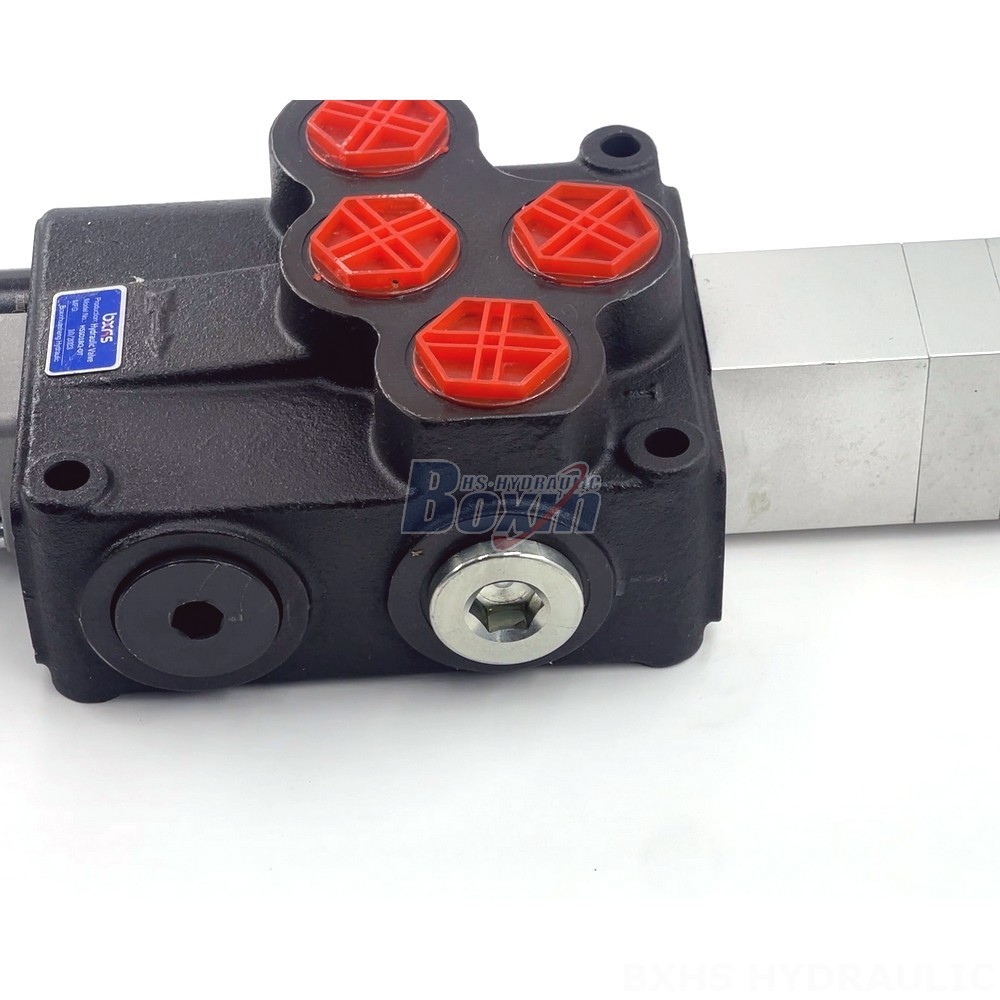

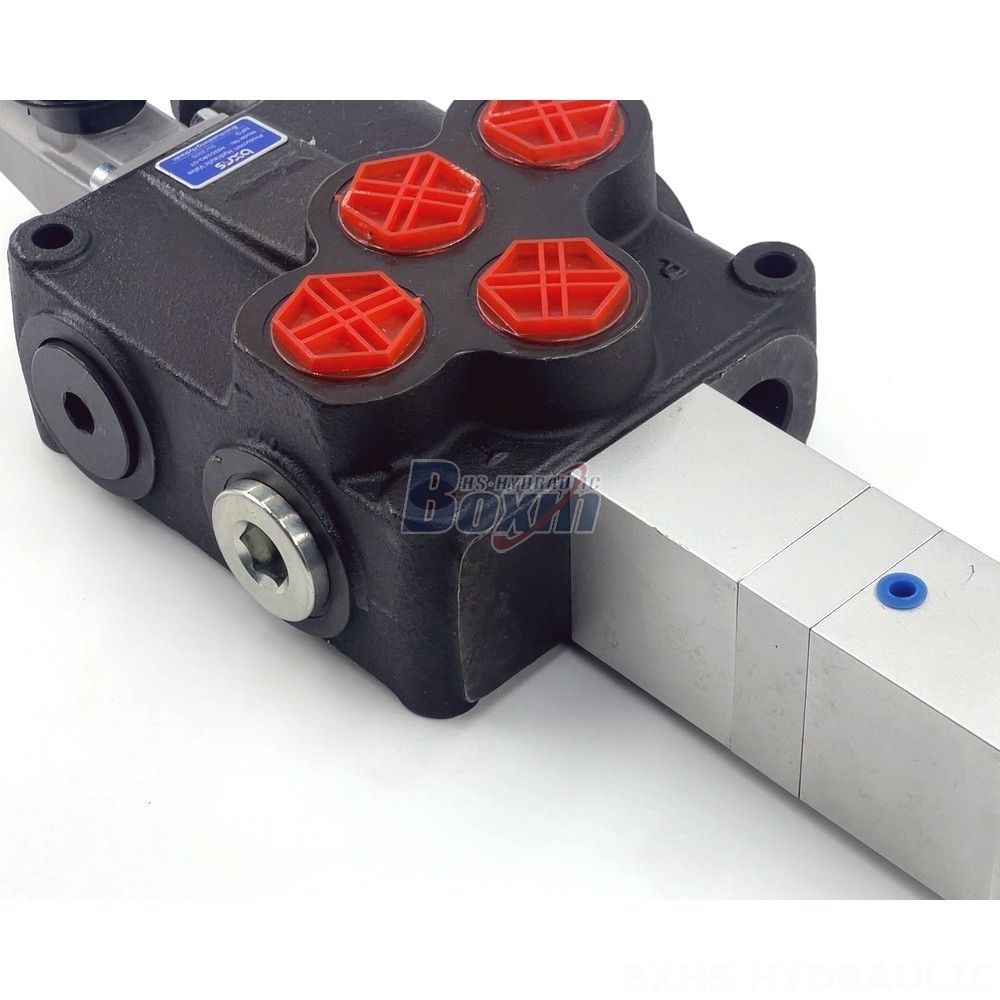

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Phương pháp điều khiển:Khí nén

Xy lanh:1 ống

Lưu lượng định mức:160 L/phút (42.2 US gpm)

Áp suất tối đa:315 bar (4600 psi)

Cổng vào:G1

Cổng ra:G1

Kích thước cổng:G1

Thương hiệu:BXHS

Loại sản phẩm:Van điều hướng

Dòng sản phẩm:Dòng SD18 Van điều hướng

Kích thước bao bì:27*44*16

Tổng trọng lượng:16.00 kg

Tình trạng hàng: Còn hàng

976 Lượt xem tìm kiếm sản phẩm này

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Pneumatic Valve | SD18 Model | Factory Direct & Customizable drawing image

The SD18 Series Hydraulic Direction Control Valve is a pneumatic, monoblock valve designed for a variety of applications including material handling, construction, agriculture, and industrial vehicles. This high-performance valve offers a rated flow of 120 L/min and a maximum pressure of 315 bar.

Dòng SD18 Van điều hướng Tham số
Phương pháp điều khiển Điều khiển thủ công, Khí nén, Điện khí-khí nén, Điện khí-thủy lực, Thủy lực, Thủy lực và thủ công, Cáp, Tay điều khiển
Xy lanh 1 ống, 2 ống, 3 ống, 4 ống
Lưu lượng định mức 160 L/phút (42.2 US gpm)
Áp suất tối đa 305 bar (4400 psi)
Cổng vào G1/2, G1, SAE 16
Cổng ra G1, SAE 16
Kích thước cổng G1, SAE 16
Phần Phần 1, Phần 2, Phần 3, Phần 4
Loại cấu trúc Van liền khối
Phạm vi nhiệt độ môi trường xung quanh -40°C đến +80°C (-40°F đến +176°F)
Phạm vi độ nhớt hoạt động 12 - 400 mm²/giây (12 cSt đến 400 cSt)

This SD18 Series Hydraulic Direction Control Valve is a robust and reliable solution for controlling hydraulic systems. Its pneumatic control method provides precise and responsive operation. The monoblock valve construction ensures durability and minimizes leakage. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this valve is suitable for various applications in material handling, construction, agriculture, and industrial vehicles. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve features a wide operating viscosity range and can withstand a wide range of ambient temperatures.
