Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Phương pháp điều khiển:Điều khiển thủ công

Xy lanh:4 ống

Lưu lượng định mức:45 L/phút (11.8 US gpm)

Áp suất tối đa:315 bar (4600 psi)

Cổng vào:G3/8

Cổng ra:G3/8

Kích thước cổng:G3/8

Thương hiệu:BXHS

Loại sản phẩm:Van điều hướng

Dòng sản phẩm:Dòng SD5 (SD5 Series) Van điều hướng

Kích thước bao bì:22.5*23.5*12.5

Tổng trọng lượng:9.90 kg

Tình trạng hàng: Còn hàng

963 Lượt xem tìm kiếm sản phẩm này

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available drawing image

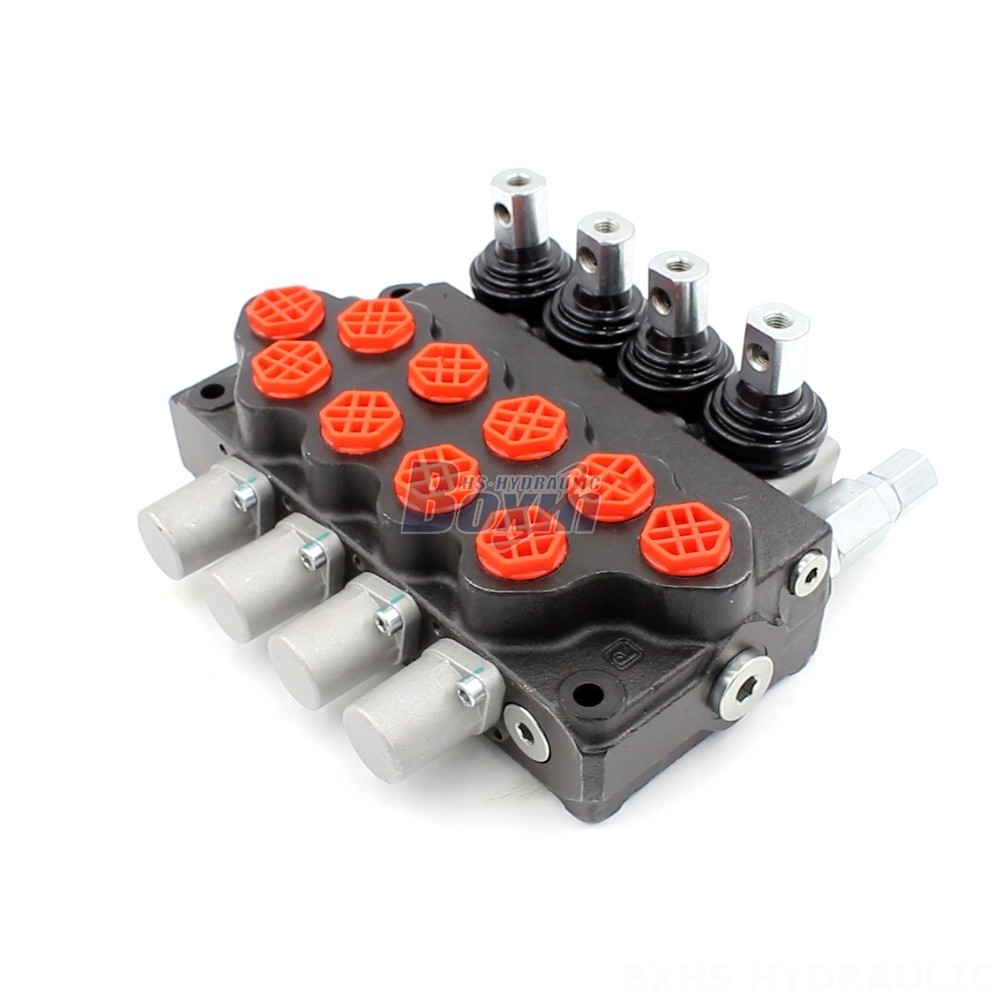

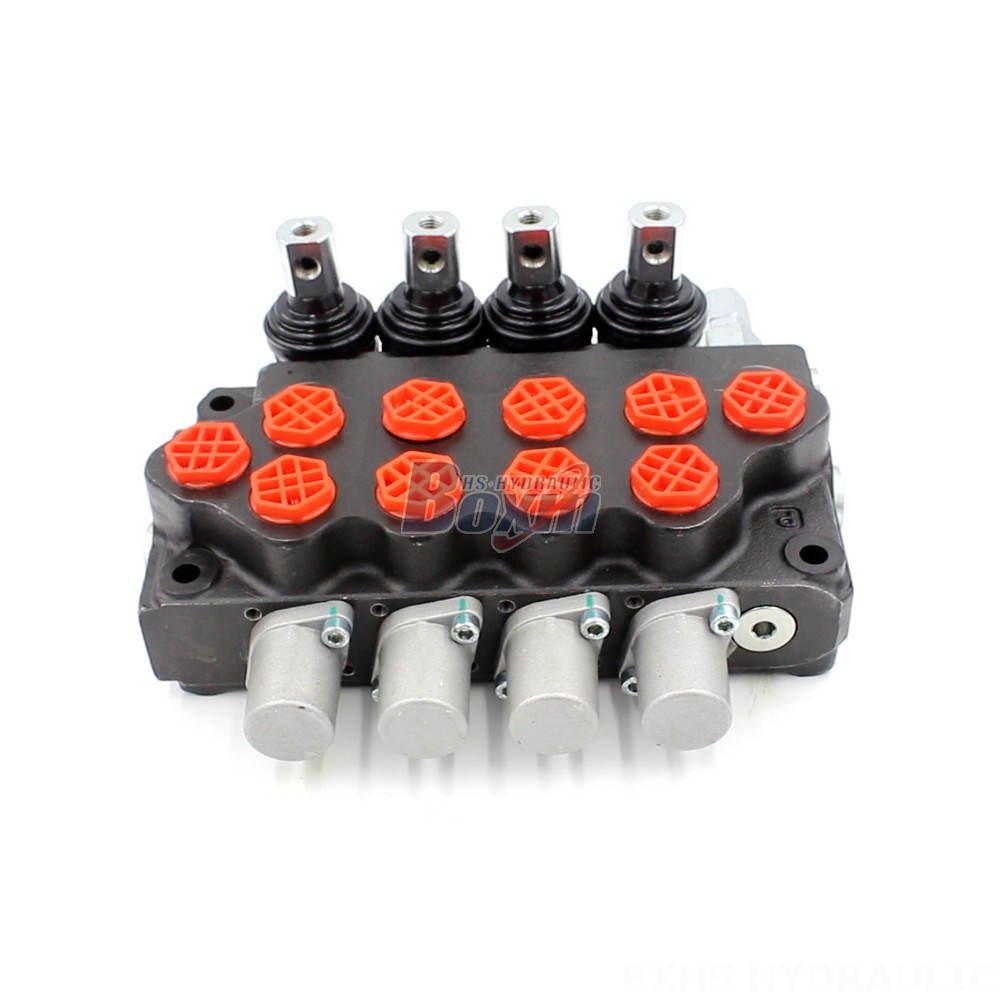

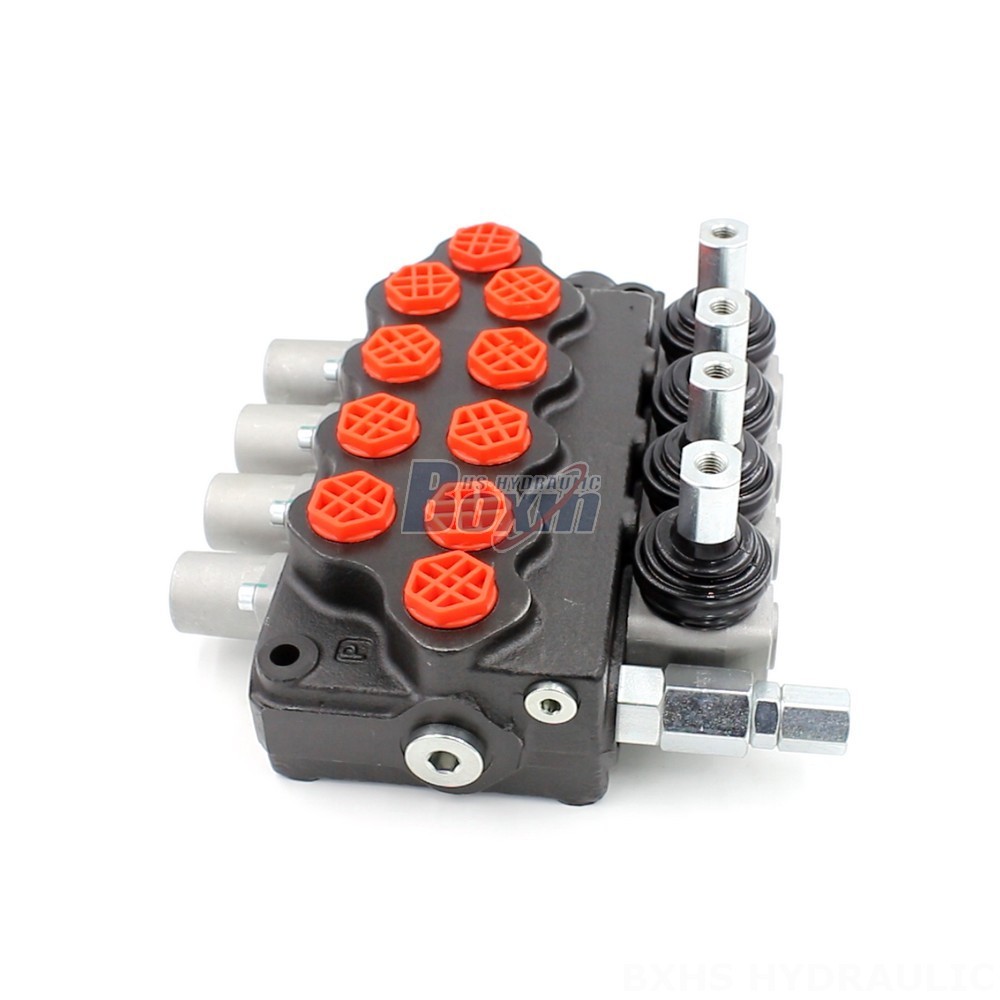

The SD5-G38 Hydraulic Two Way Valve is a high-performance, manual control valve designed for use in a variety of construction, material handling, and agricultural applications. This monoblock valve features a 4-section design, a 40 L/min rated flow, and a maximum pressure of 305 bar. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.

Dòng SD5 (SD5 Series) Van điều hướng Tham số
Phương pháp điều khiển Điều khiển thủ công, Khí nén, Điện khí-khí nén, Điện khí-thủy lực, Biến áp, Thủy lực, Thủy lực và thủ công, Cáp, Tay điều khiển
Xy lanh 1 ống, 2 ống, 3 ống, 4 ống, 5 ống, 6 cuộn, 7 ống
Phạm vi nhiệt độ môi trường xung quanh -40°C đến +60°C (-40°F đến +140°F)
Loại cấu trúc Van liền khối
Phần Phần 1, Phần 2, Phần 3, Phần 4, Phần 5, Phần 6, Phần 7
Phạm vi độ nhớt hoạt động 15 - 75 mm²/giây (15 cSt đến 75 cSt)
Lưu lượng định mức 40 L/phút (10.5 US gpm)
Áp suất tối đa 305 bar (4400 psi)
Cổng vào G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Cổng ra G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Kích thước cổng G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Hydraulic Two Way Valve is a robust and reliable valve that is ideal for demanding applications. It is manufactured from high-quality materials and is designed to withstand a wide range of operating conditions. The valve features a manual control method, a 4-section design, and a monoblock structure. It has a rated flow of 40 L/min and a maximum pressure of 305 bar. The operating viscosity range is 15-75 mm²/s and the ambient temperature range is -40°C to +60°C. This valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. We offer wholesale and customization options for this product.
