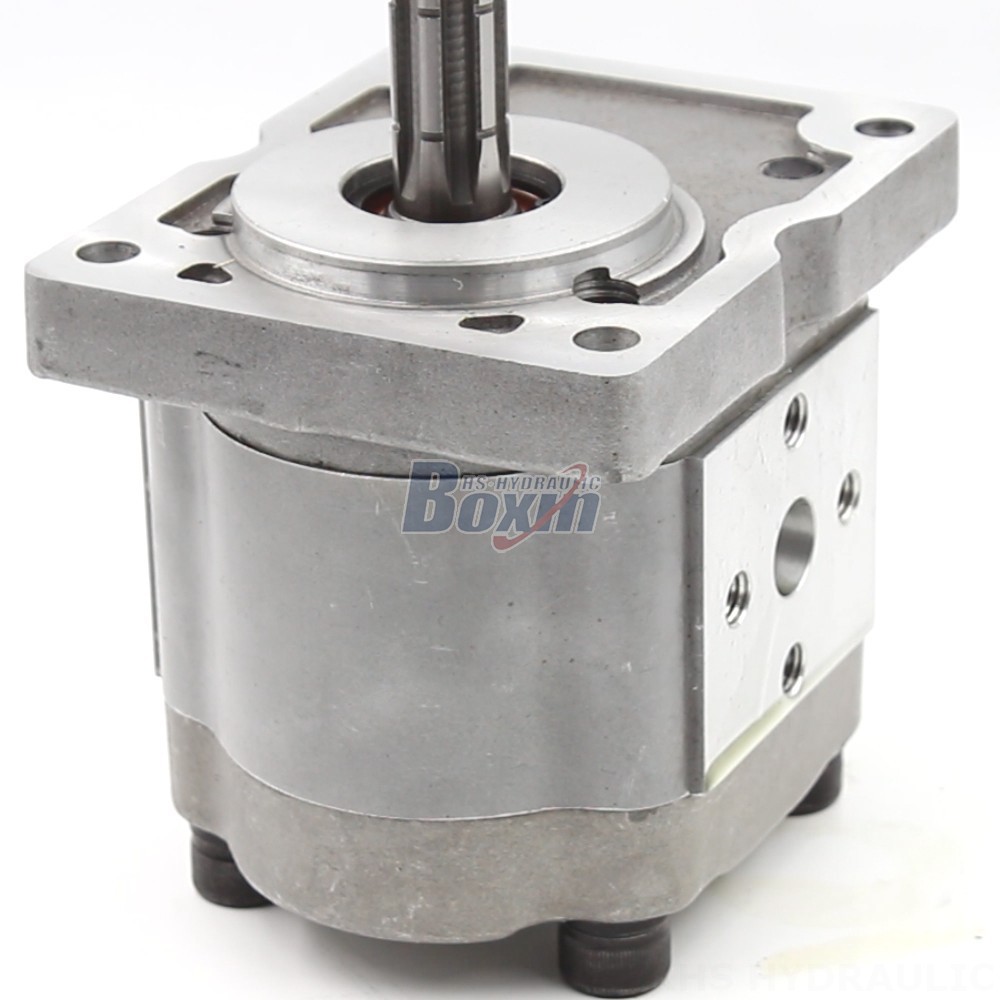

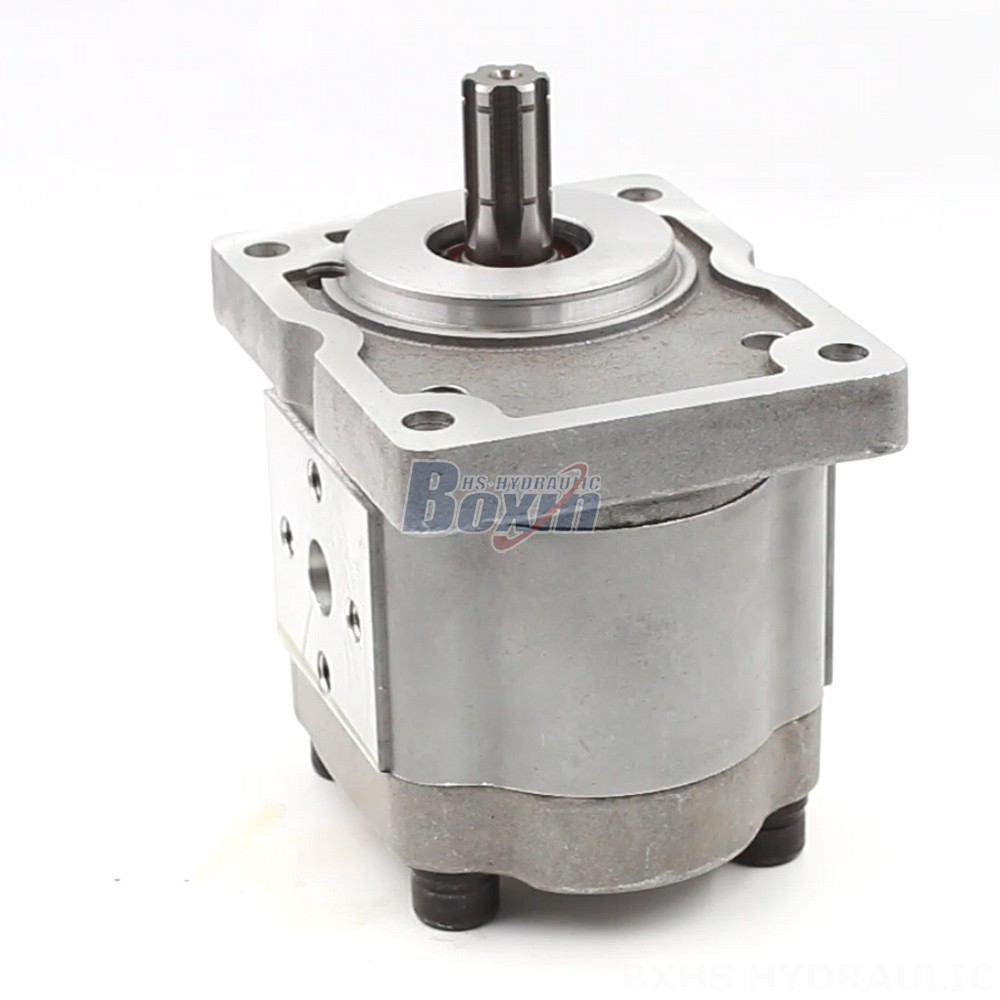

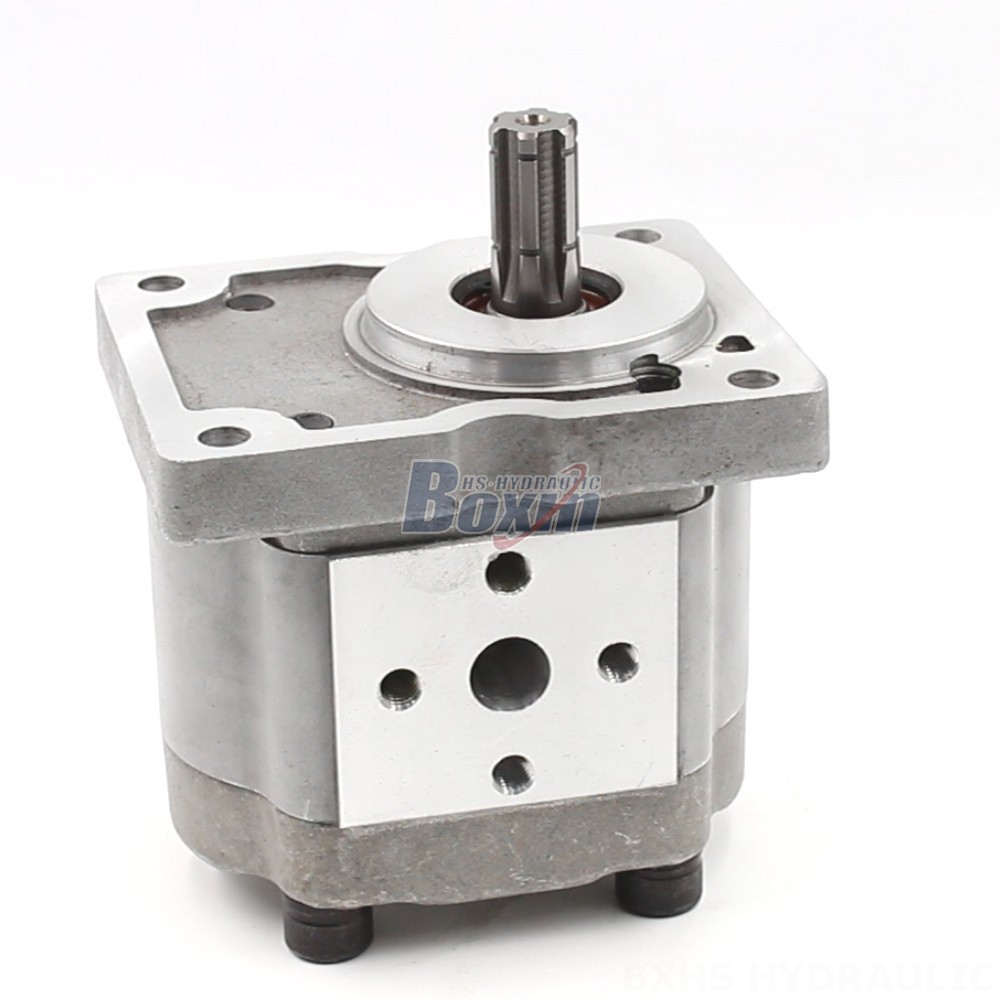

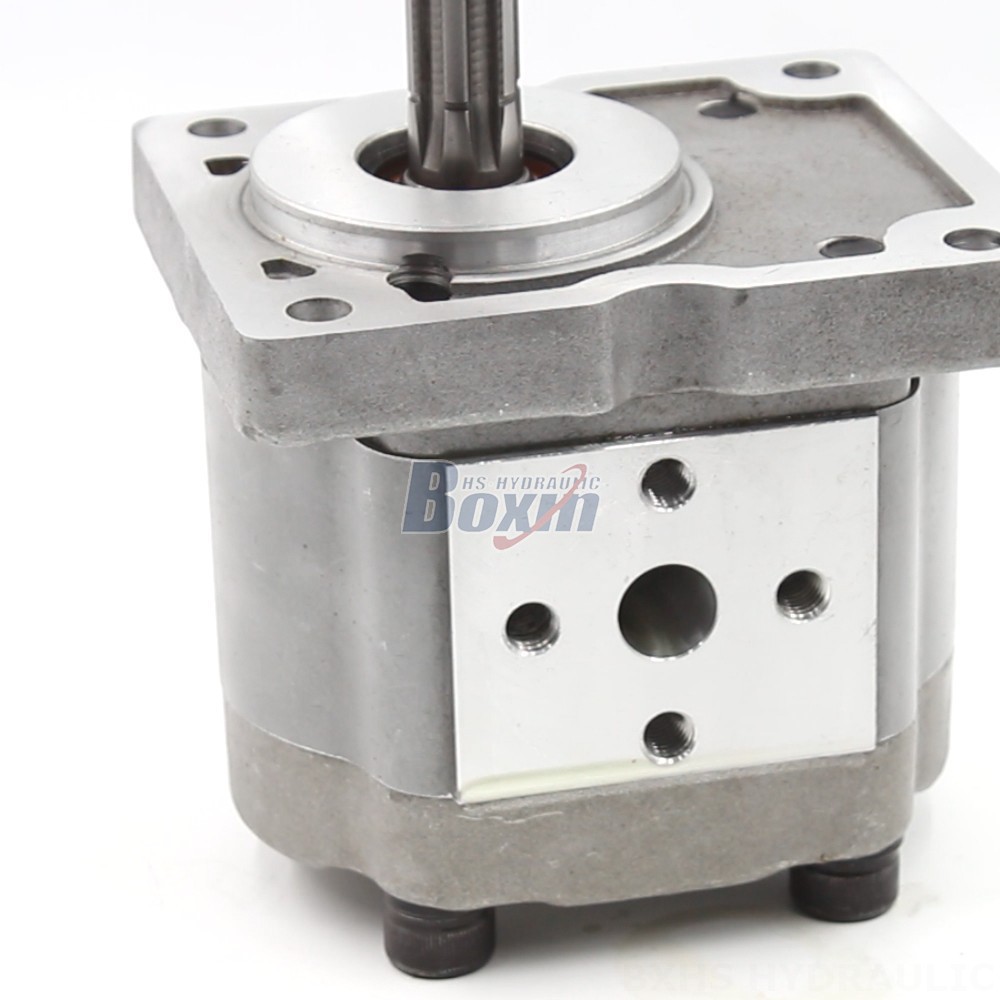

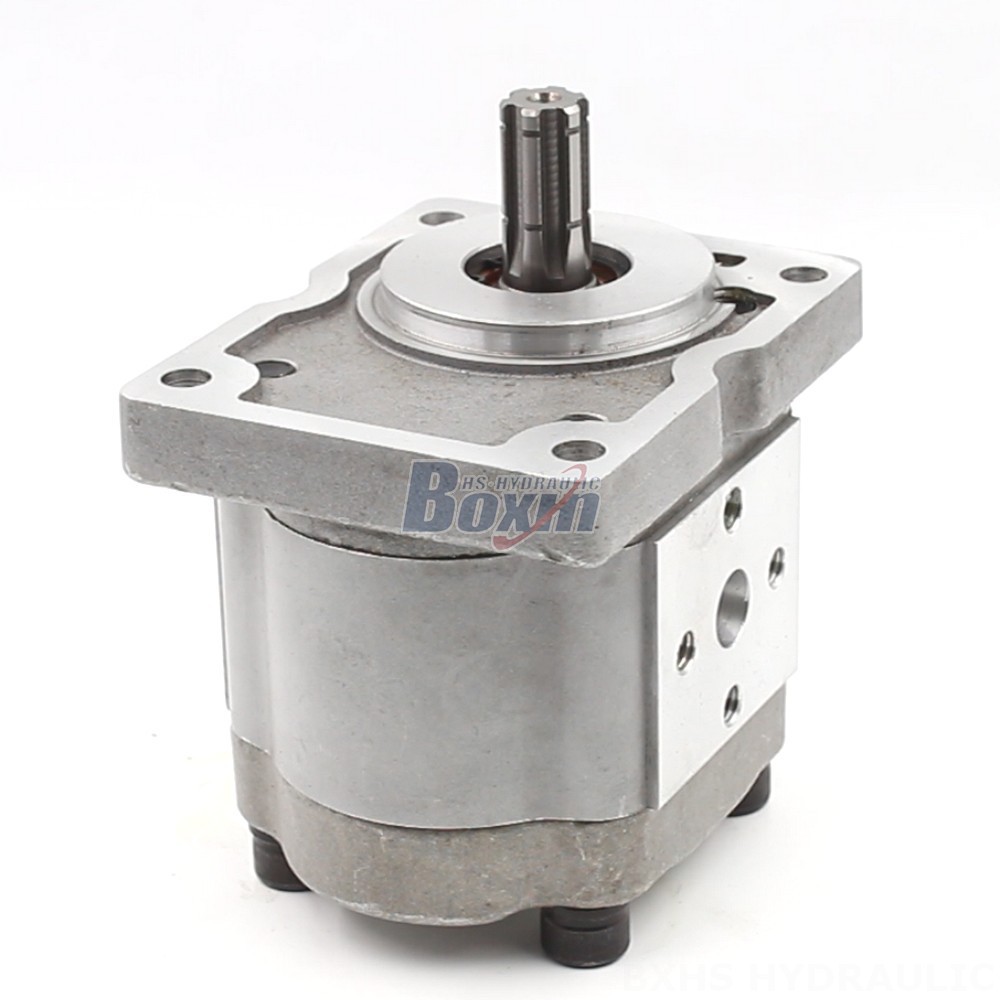

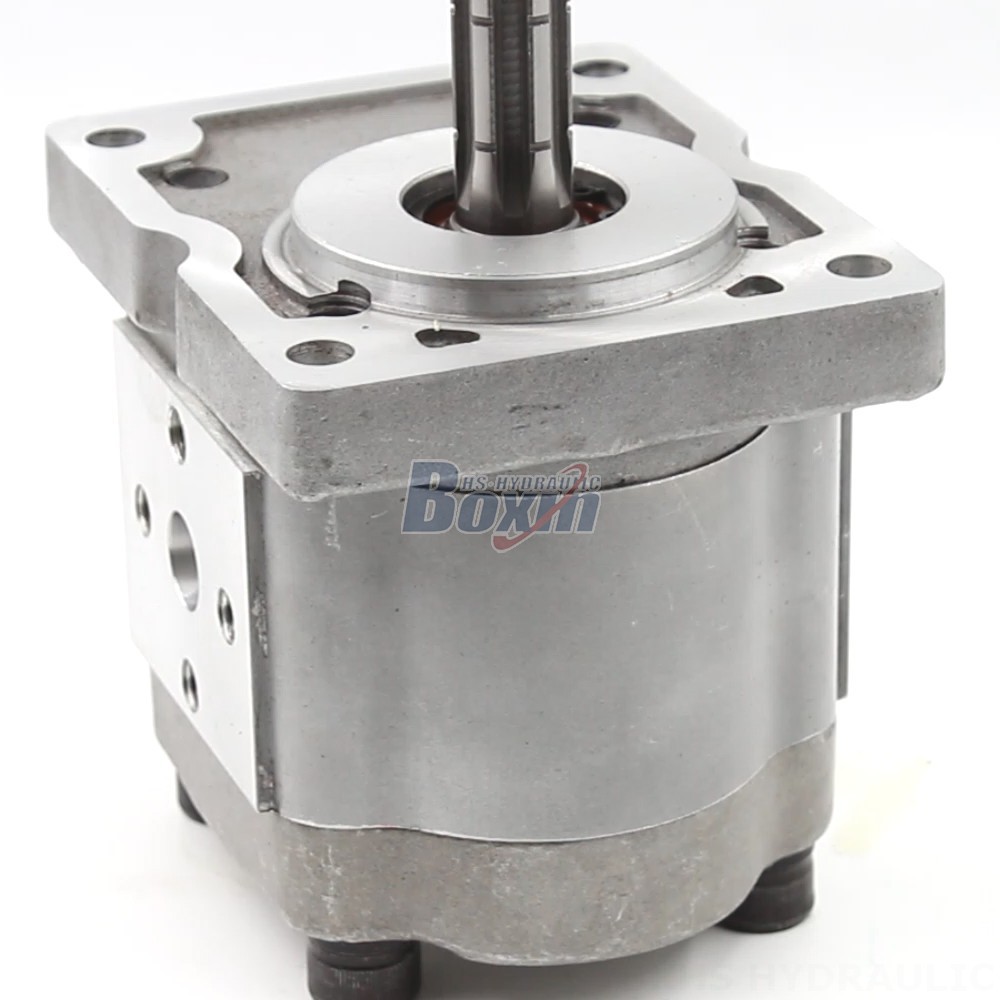

The NSH-10 Hydraulic Gear Pump is a versatile and reliable hydraulic pump designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. It delivers exceptional performance with a displacement of 100 cc/rev and a rated pressure of 18 MPa (2610 psi).
| Dòng NSH Bơm bánh răng thủy lực Tham số | |
|---|---|
| Dung tích | 10 cc/vòng, 32 cc/vòng, 40 cc/vòng, 50 cc/vòng, 100 cc/vòng |
| Áp suất định mức | Áp suất 18 MPa (2610 psi) |
| Áp suất tối đa | Áp suất 20 MPa (2900 psi) |
| Tốc độ định mức | 2000 vòng/phút |
| Tốc độ tối đa | 4200 vòng/phút |
| Chiều quay | L: Trái (ngược chiều kim đồng hồ) |
| Vật liệu | Nhôm |
| Cấu trúc | Bơm bánh răng ngoài |
| Phiên bản mặt bích | B-Bích vuông |
| Loại trục | X: Rãnh then cong |
**NSH-10 Hydraulic Gear Pump: Power and Efficiency for Demanding Applications**
The NSH-10 Hydraulic Gear Pump is a высококачественный and durable pump constructed from robust aluminium. It features an external gear design with a B-Square Flange and an Involute Spline shaft type. This pump is part of the NSH Series and is available in various displacements, including 10 cc/rev, 40 cc/rev, and 50 cc/rev.
**Key Features and Benefits:**
* Displacement: 100 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Left (counter-clockwise) rotation
* External Gear Pump structure
* Aluminium material
* B-Square Flange version
* Involute Spline shaft type
The NSH-10 Hydraulic Gear Pump is widely used in various applications, including:
* Material Handling Equipment
* Construction and Earth Moving Equipment
* Agricultural Machinery
* Industrial Vehicles
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
With its exceptional performance, durability, and versatility, the NSH-10 Hydraulic Gear Pump is an ideal choice for a wide range of hydraulic applications that demand power and efficiency.
