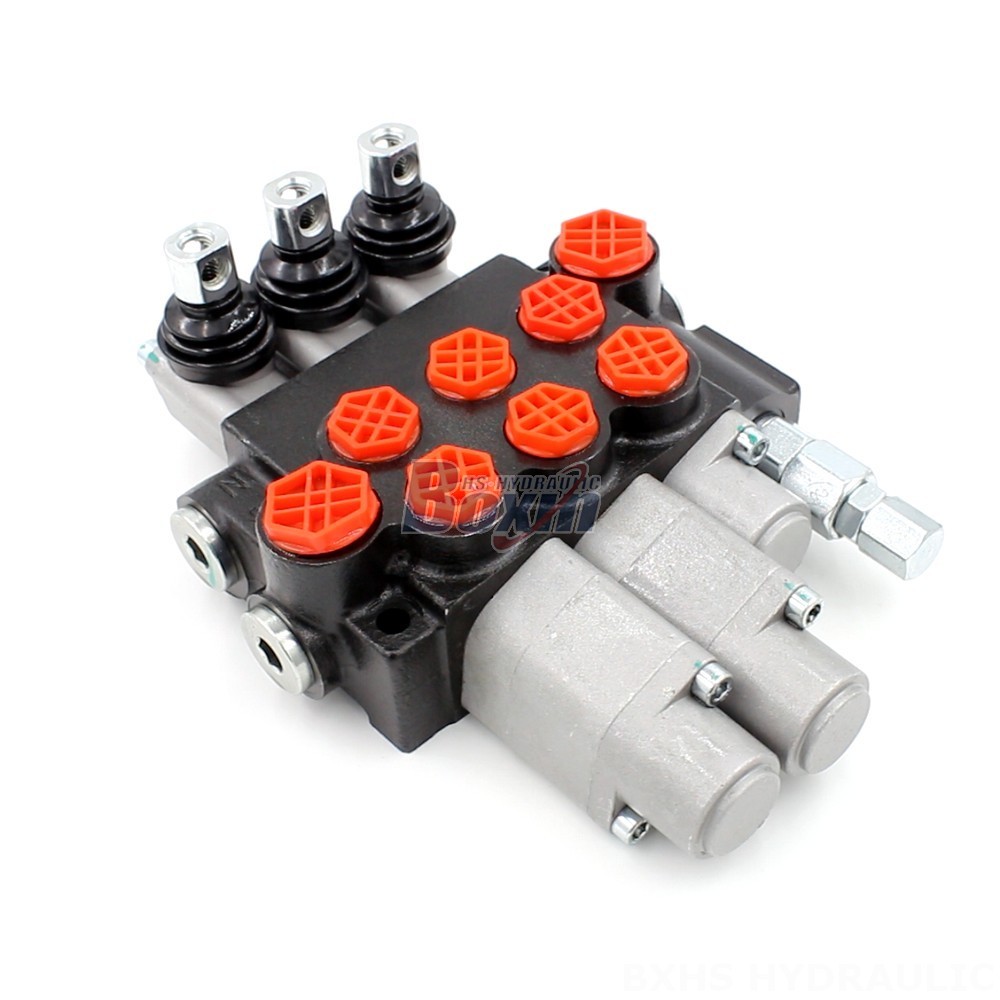

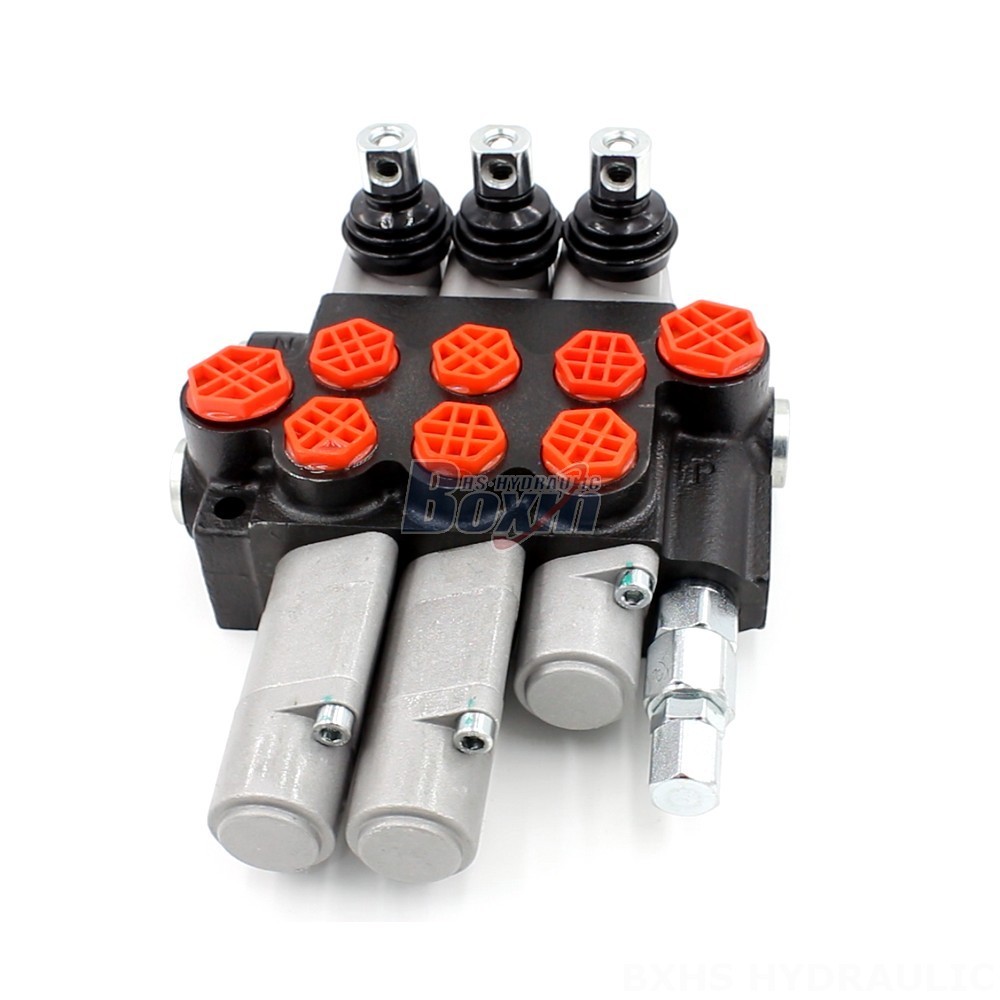

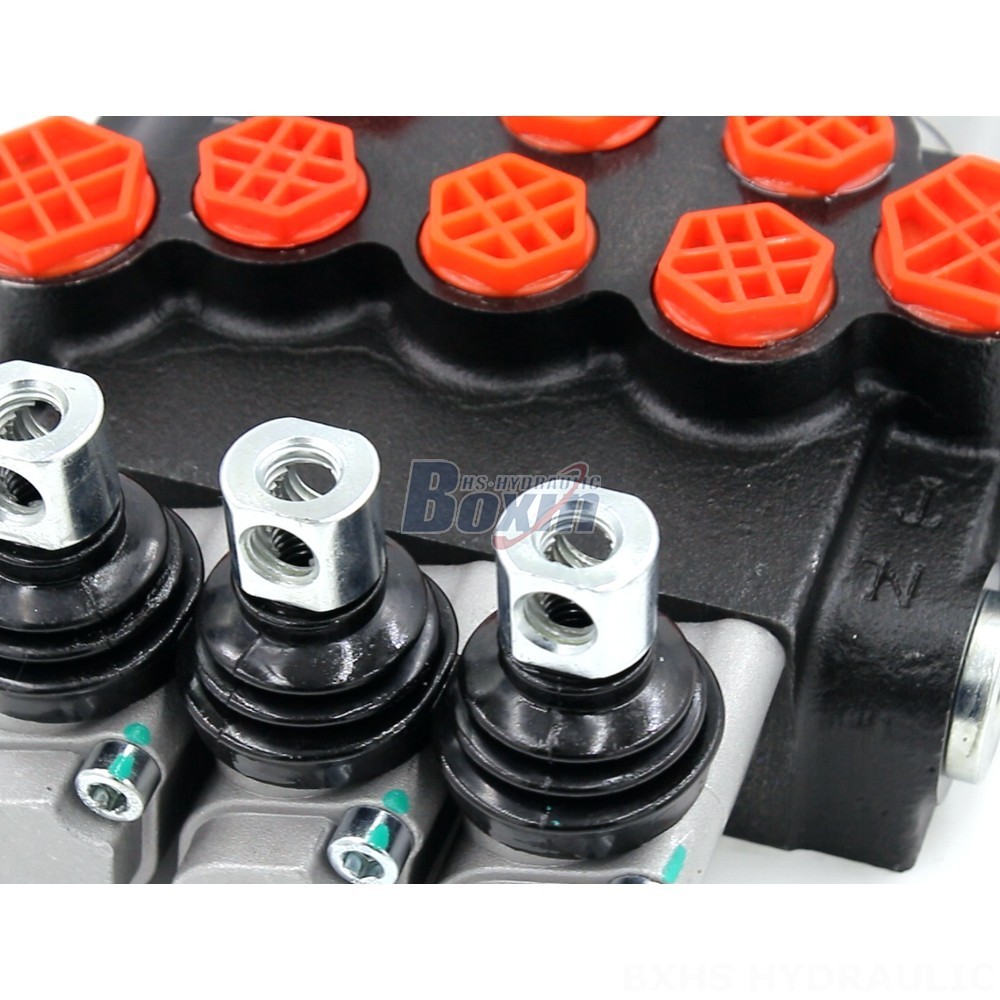

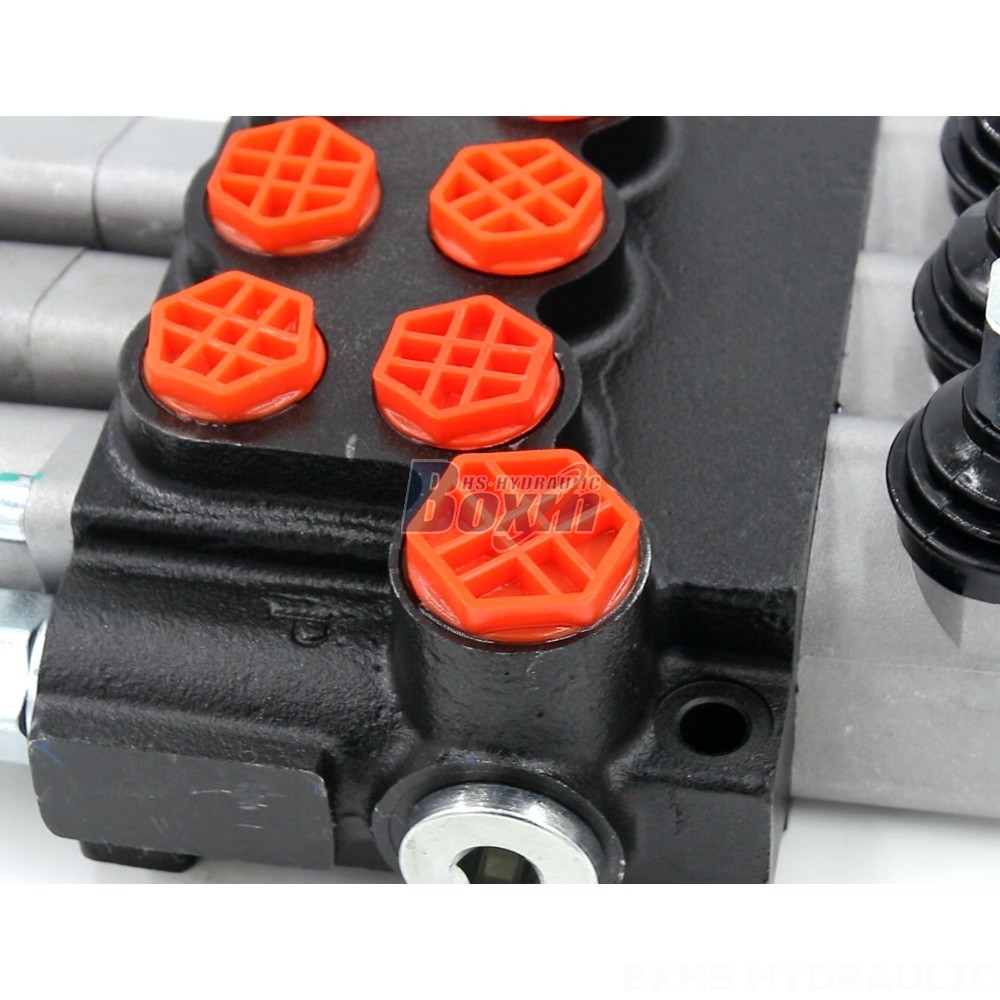

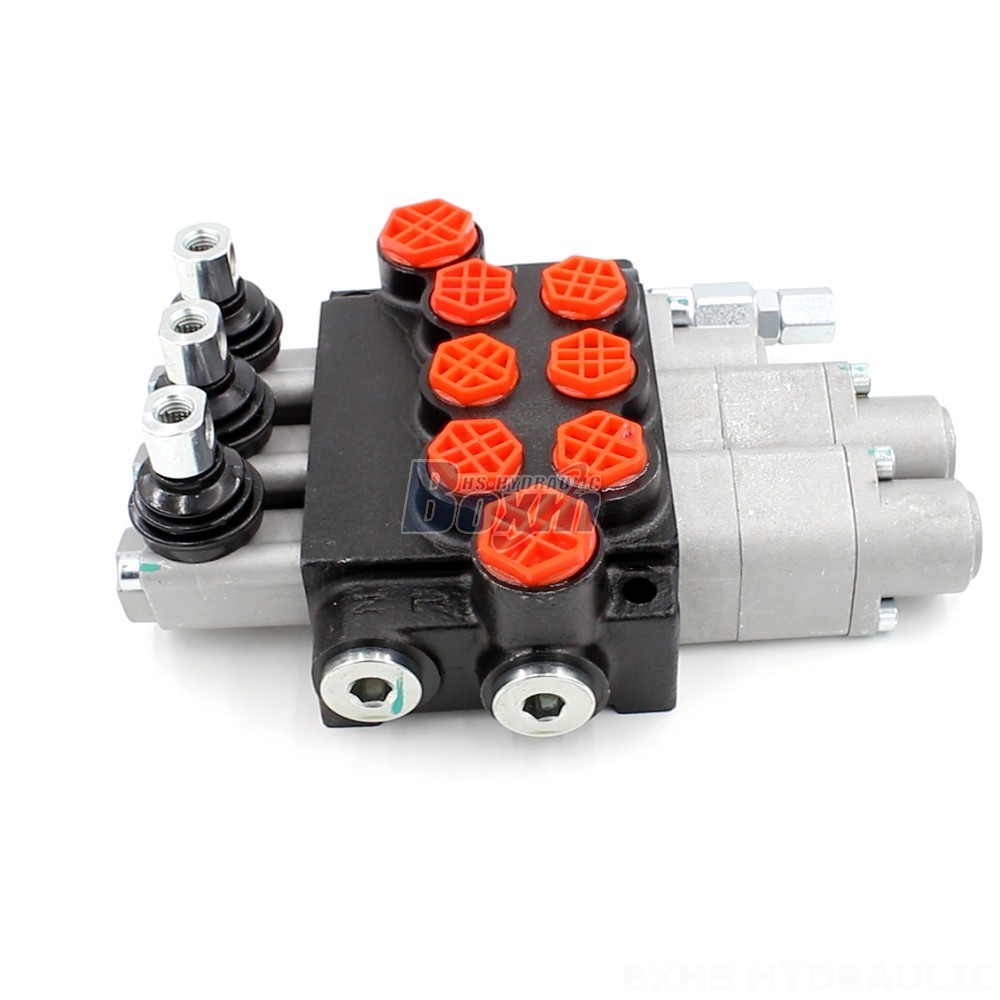

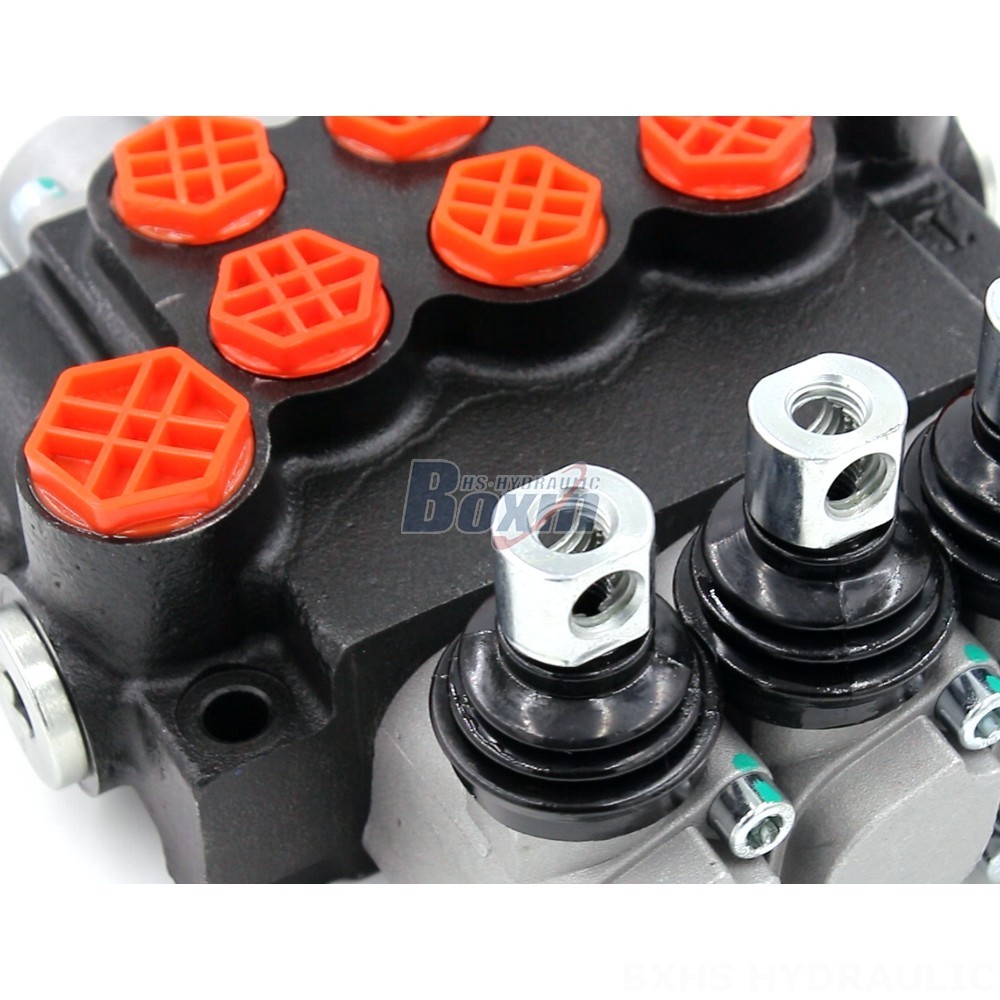

Monoblock Hydraulic Valve | P40-G12-G38-OT-2QTW Series

Phương pháp điều khiển:Điều khiển thủ công

Xy lanh:3 ống

Lưu lượng định mức:40 L/phút (10.5 US gpm)

Áp suất tối đa:250 bar (3600 psi)

Cổng vào:G1/2

Cổng ra:G1/2

Kích thước cổng:G3/8

Thương hiệu:BXHS

Loại sản phẩm:Van điều hướng

Dòng sản phẩm:Dòng P40 Van điều hướng

Kích thước bao bì:24*21*13

Tổng trọng lượng:7.00 kg

Tình trạng hàng: Còn hàng

1171 Lượt xem tìm kiếm sản phẩm này

Monoblock Hydraulic Valve | P40-G12-G38-OT-2QTW Series

Monoblock Hydraulic Valve | P40-G12-G38-OT-2QTW Series

Monoblock Hydraulic Valve | P40-G12-G38-OT-2QTW Series drawing image

The P40-G12-G38-OT-2QTW Series is a high-performance, manual-controlled hydraulic valve designed for various construction and industrial applications. This 3-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, suitable for telehandlers, forklifts, cranes, and other heavy-duty machinery.

Dòng P40 Van điều hướng Tham số
Phương pháp điều khiển Điều khiển thủ công, Khí nén, Điện khí-khí nén, Điện khí-thủy lực, Biến áp, Thủy lực, Thủy lực và thủ công, Cáp, Tay điều khiển, Biến áp và tay điều khiển, Thủ công và tay điều khiển, Nam châm điện (Solenoid) và Cáp điều khiển
Xy lanh 1 ống, 2 ống, 3 ống, 4 ống, 5 ống, 6 cuộn, 7 ống
Phạm vi nhiệt độ môi trường xung quanh -40°C đến +80°C (-40°F đến +176°F)
Loại cấu trúc Van liền khối
Phần Phần 1, Phần 2, Phần 3, Phần 4, Phần 5, Phần 6, Phần 7
Phạm vi độ nhớt hoạt động 15 - 75 mm²/giây (15 cSt đến 75 cSt)
Lưu lượng định mức 40 L/phút (10.5 US gpm)
Áp suất tối đa 250 bar (3600 psi)
Cổng vào G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Cổng ra G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Kích thước cổng G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This Tractor Hydraulic Control Electric Valve Monoblock Hydraulic Valve from the P40 Series is a robust and reliable solution for controlling hydraulic systems in various applications, including construction, material handling, agriculture, and industrial vehicles. The valve features a manual control method and a 3-section monoblock structure. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders. The P40-G12-G38-OT-2QTW Series offers a wide operating viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring reliable performance in diverse environments.
