Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Phương pháp điều khiển:Điều khiển thủ công

Xy lanh:5 ống

Lưu lượng định mức:45 L/phút (11.8 US gpm)

Áp suất tối đa:315 bar (4600 psi)

Cổng vào:G3/8

Cổng ra:G3/8

Kích thước cổng:G3/8

Thương hiệu:BXHS

Loại sản phẩm:Van điều hướng

Dòng sản phẩm:Dòng SD5 (SD5 Series) Van điều hướng

Kích thước bao bì:35*31*21

Tổng trọng lượng:12.50 kg

Tình trạng hàng: Còn hàng

1373 Lượt xem tìm kiếm sản phẩm này

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM drawing image

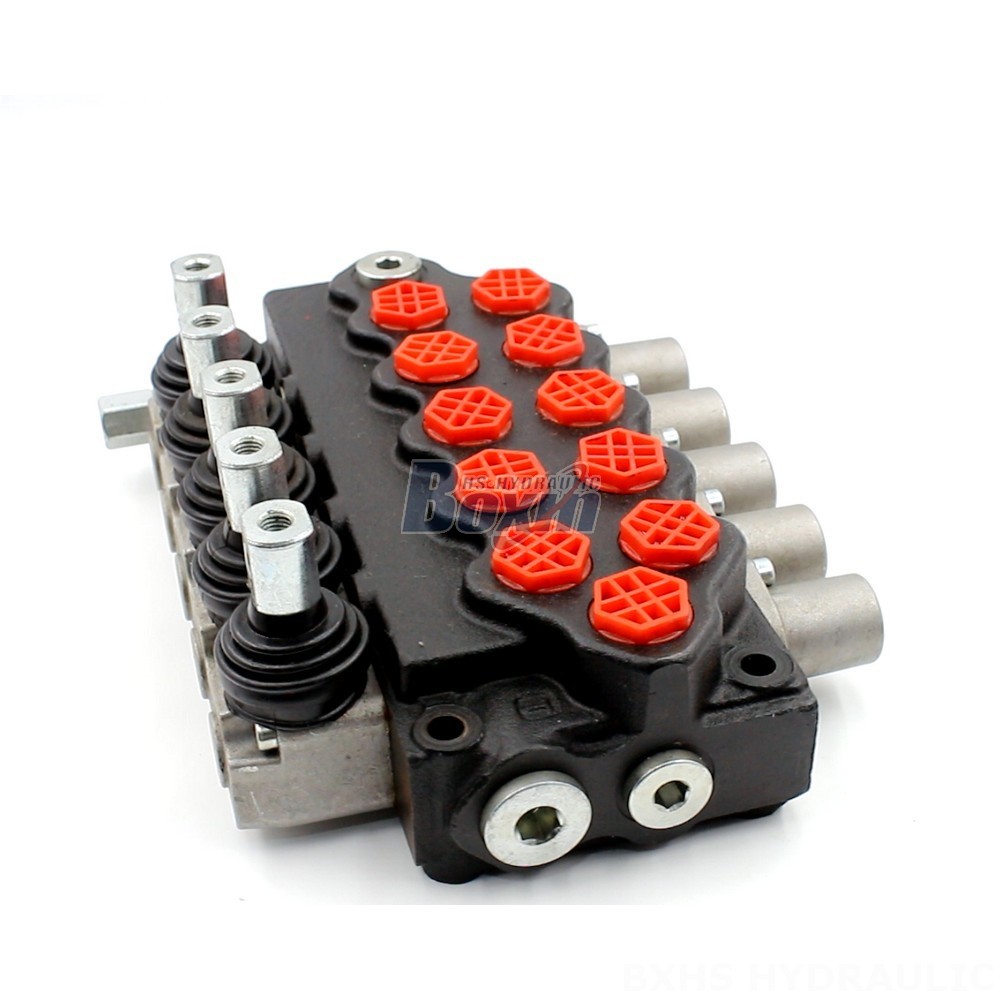

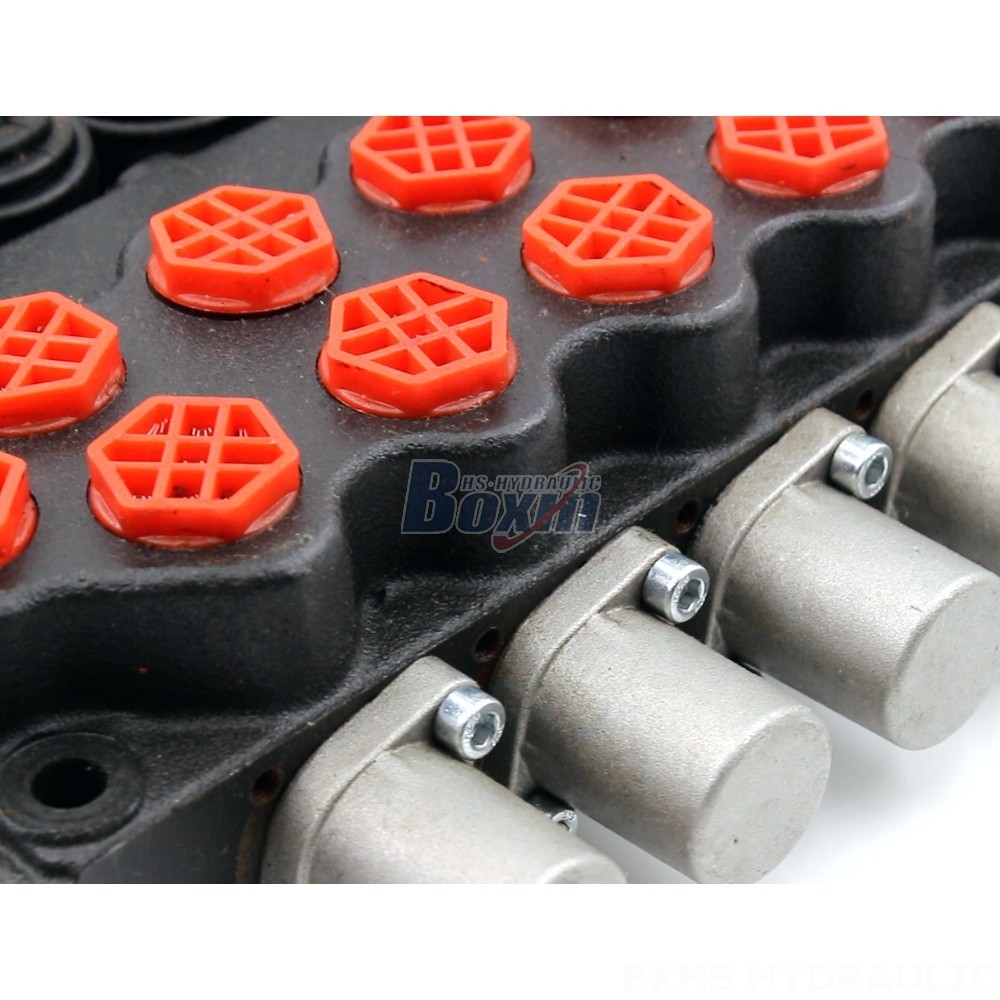

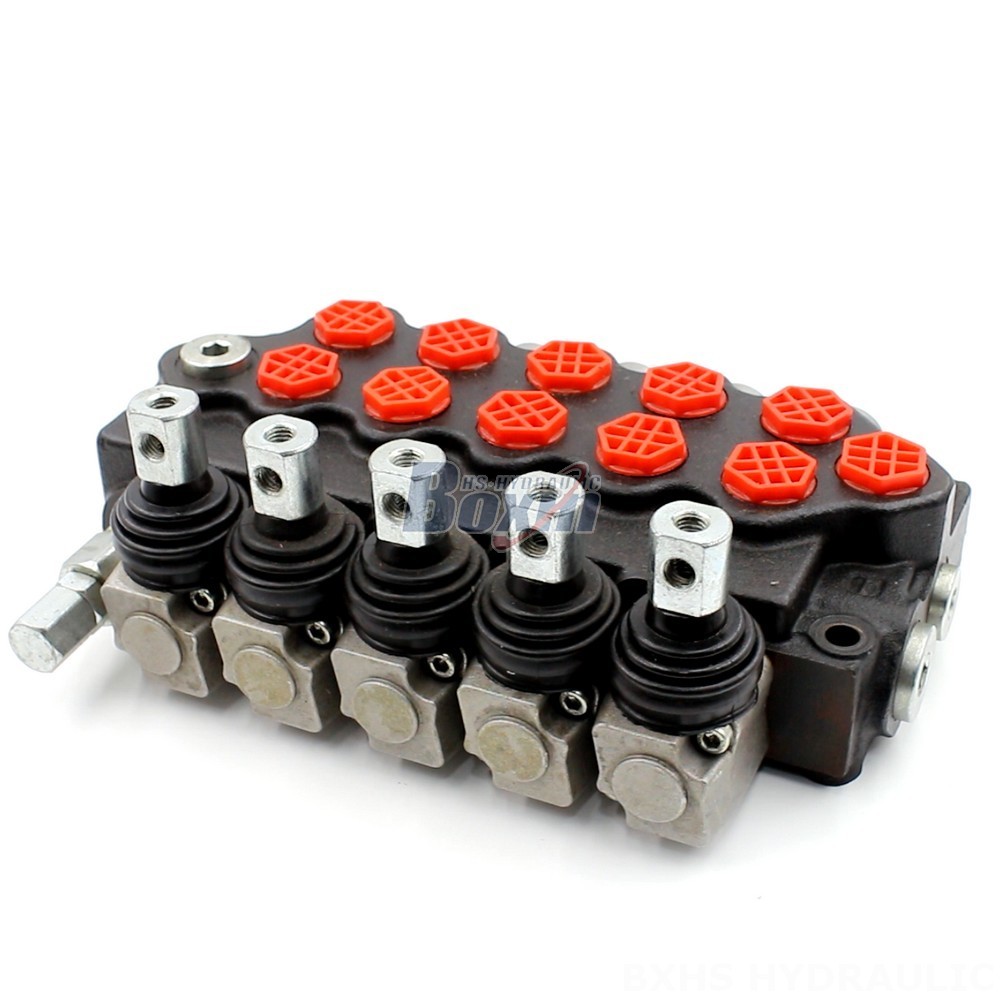

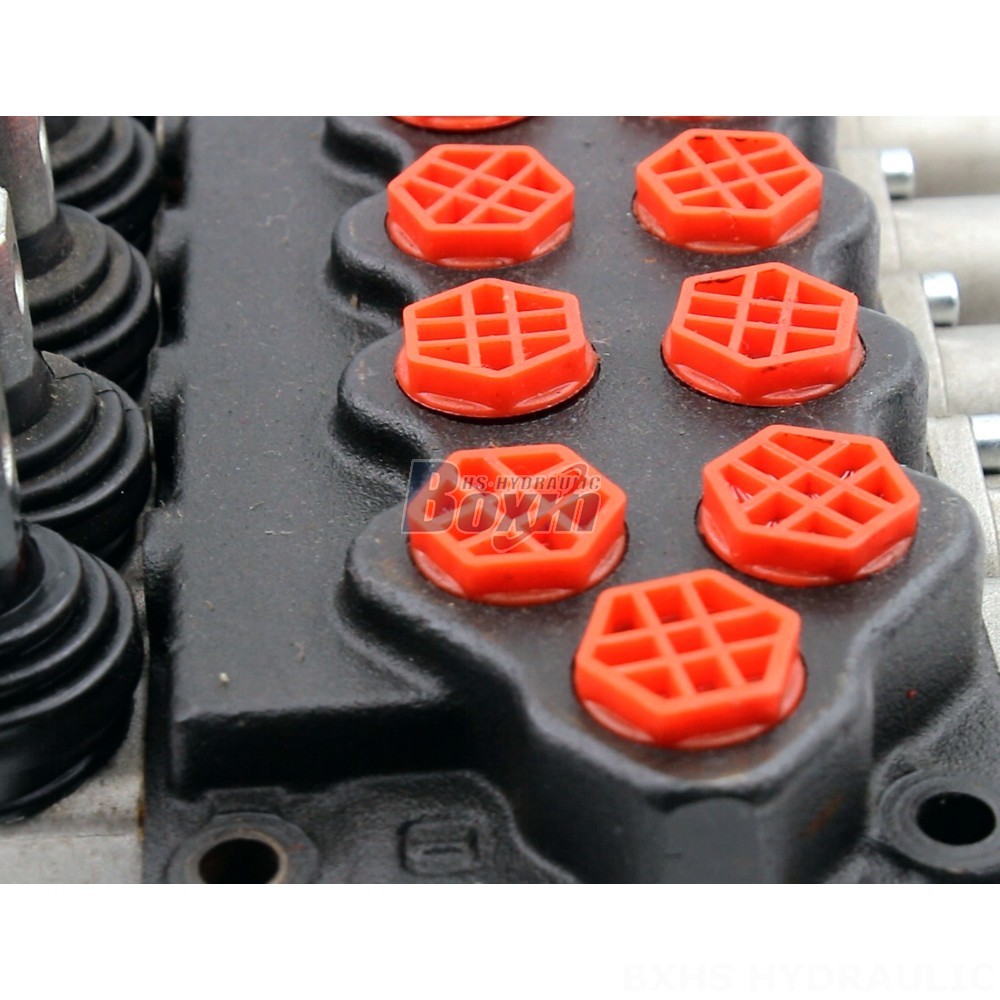

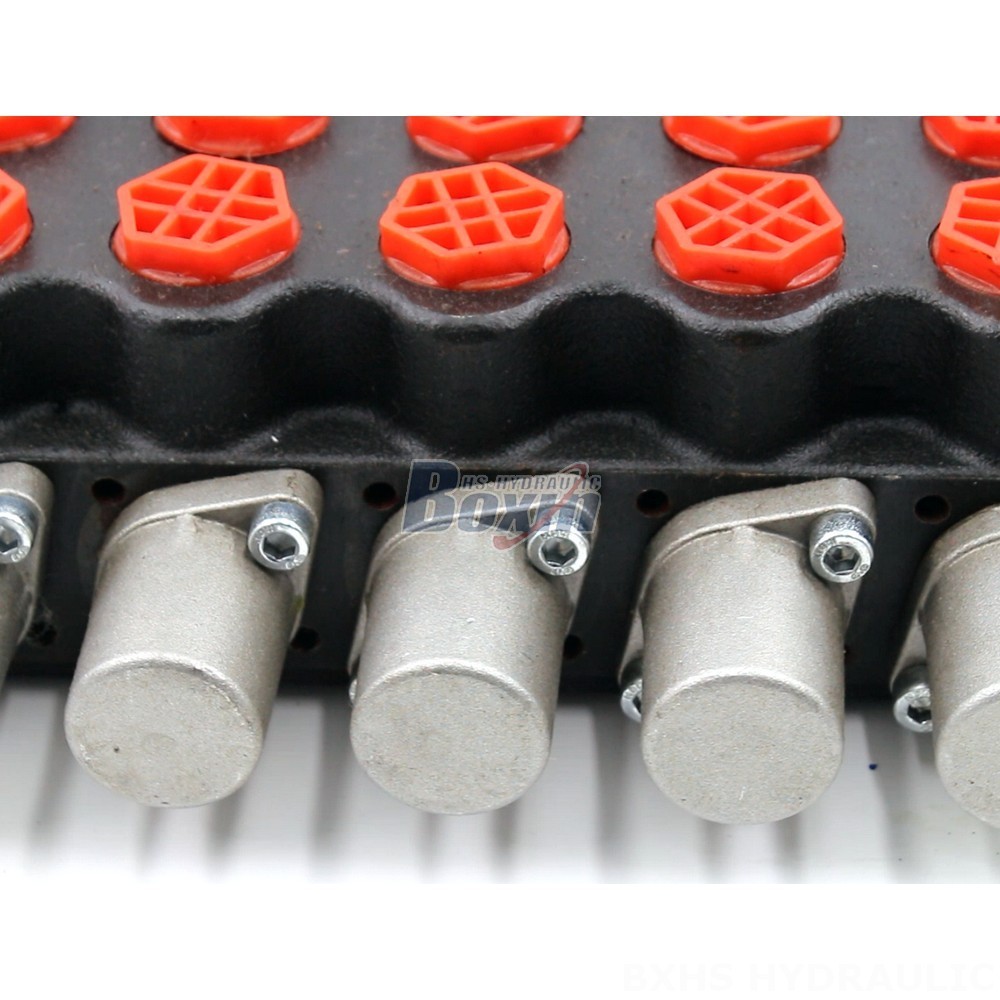

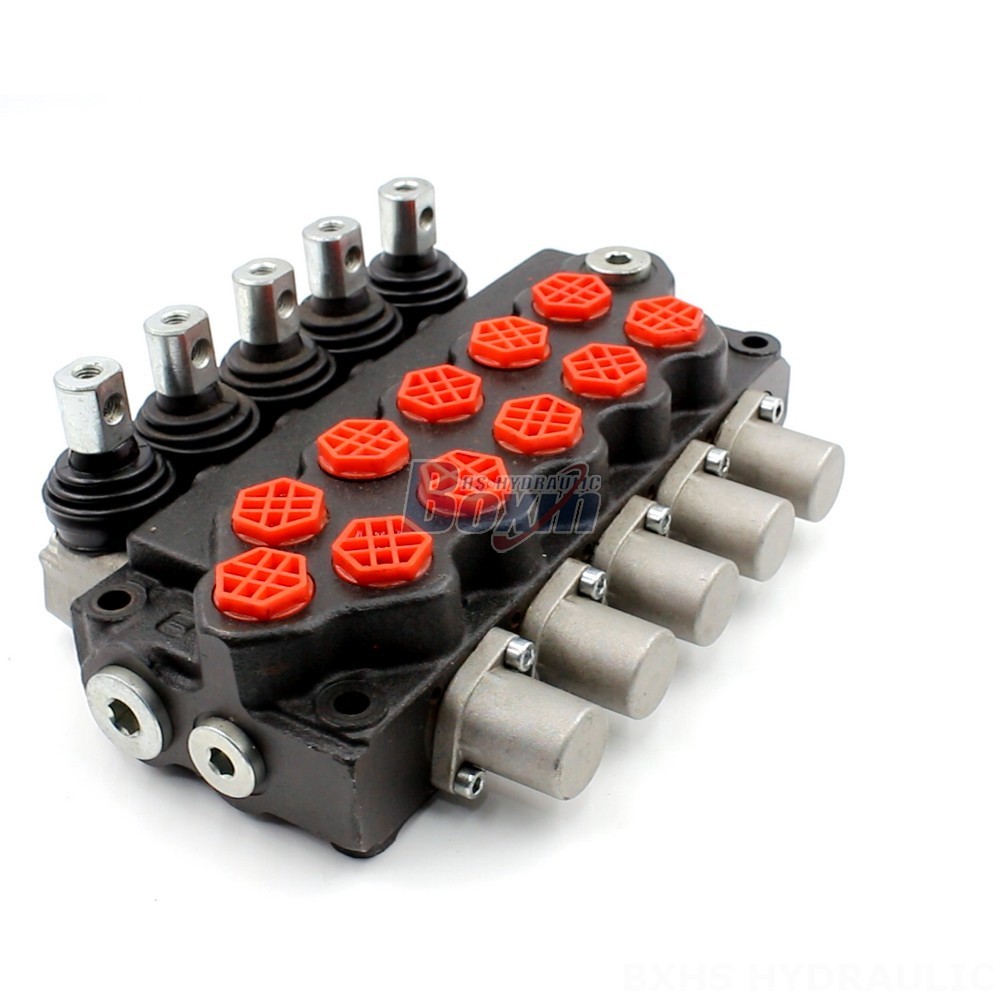

The SD5-G38 Series Lever Hydraulic Valve is a 5-section, manual monoblock directional valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This high-performance valve features a rated flow of 40 L/min and a maximum pressure of 305 bar, making it ideal for demanding operating conditions.

Dòng SD5 (SD5 Series) Van điều hướng Tham số
Phương pháp điều khiển Điều khiển thủ công, Khí nén, Điện khí-khí nén, Điện khí-thủy lực, Biến áp, Thủy lực, Thủy lực và thủ công, Cáp, Tay điều khiển
Xy lanh 1 ống, 2 ống, 3 ống, 4 ống, 5 ống, 6 cuộn, 7 ống
Phạm vi nhiệt độ môi trường xung quanh -40°C đến +60°C (-40°F đến +140°F)
Loại cấu trúc Van liền khối
Phần Phần 1, Phần 2, Phần 3, Phần 4, Phần 5, Phần 6, Phần 7
Phạm vi độ nhớt hoạt động 15 - 75 mm²/giây (15 cSt đến 75 cSt)
Lưu lượng định mức 40 L/phút (10.5 US gpm)
Áp suất tối đa 305 bar (4400 psi)
Cổng vào G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Cổng ra G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Kích thước cổng G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Series Lever Hydraulic Valve is a robust and reliable 5-section, manual monoblock directional valve. It is designed for use in a wide range of heavy-duty applications, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, harvesters, and other construction and industrial vehicles. This valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for demanding operating conditions. The valve also features a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in various environments. We offer wholesale and OEM options, making it easy for you to find the perfect solution for your needs. Contact us today to learn more about this high-performance hydraulic valve.
