Industrial Grade P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump from Factory

Dung tích:64.6 cc/vòng

Áp suất định mức:Áp suất 16 MPa (2320 psi)

Áp suất tối đa:Áp suất 17 MPa (2465 psi)

Tốc độ tối đa:2200 vòng/phút

Chiều quay:Hai chiều

Thương hiệu:BXHS

Loại sản phẩm:Bơm bánh răng thủy lực

Dòng sản phẩm:Dòng P21 Bơm bánh răng thủy lực

Kích thước bao bì:45*25*18

Tổng trọng lượng:16.00 kg

Tình trạng hàng: Còn hàng

152 Lượt xem tìm kiếm sản phẩm này

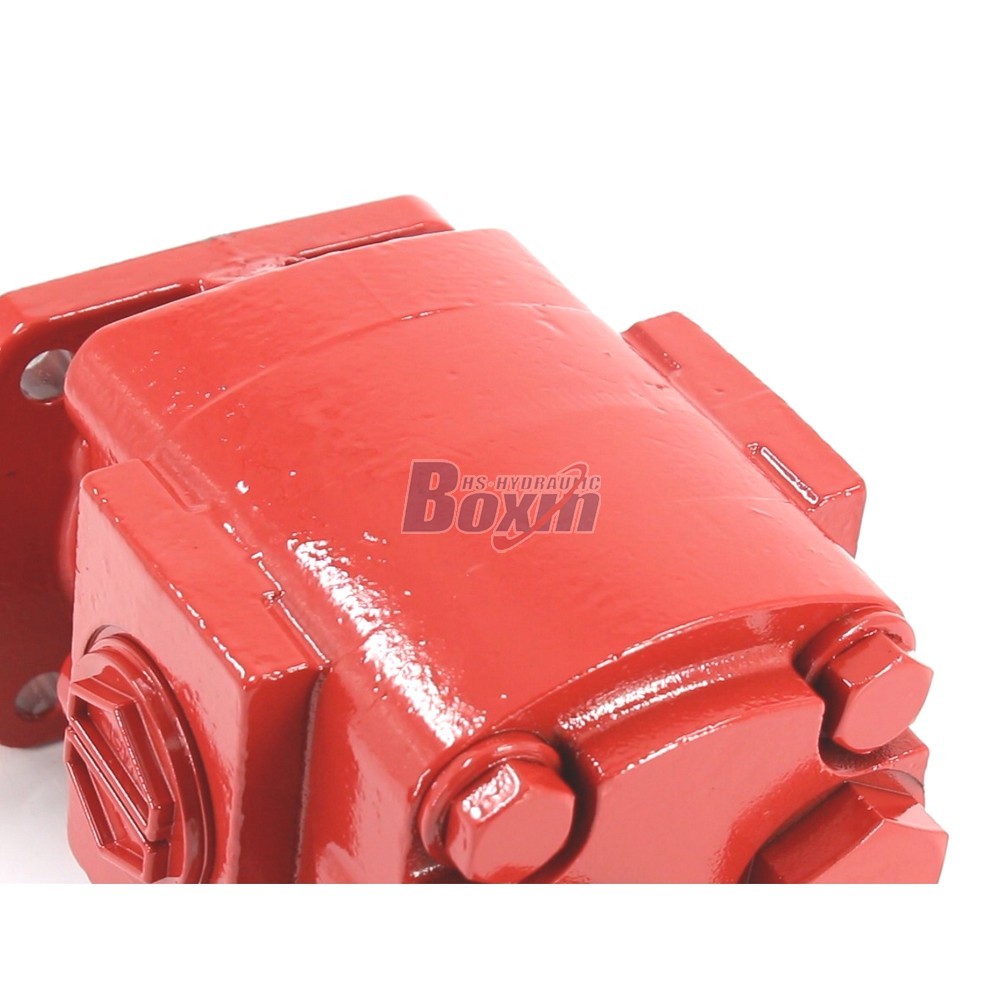

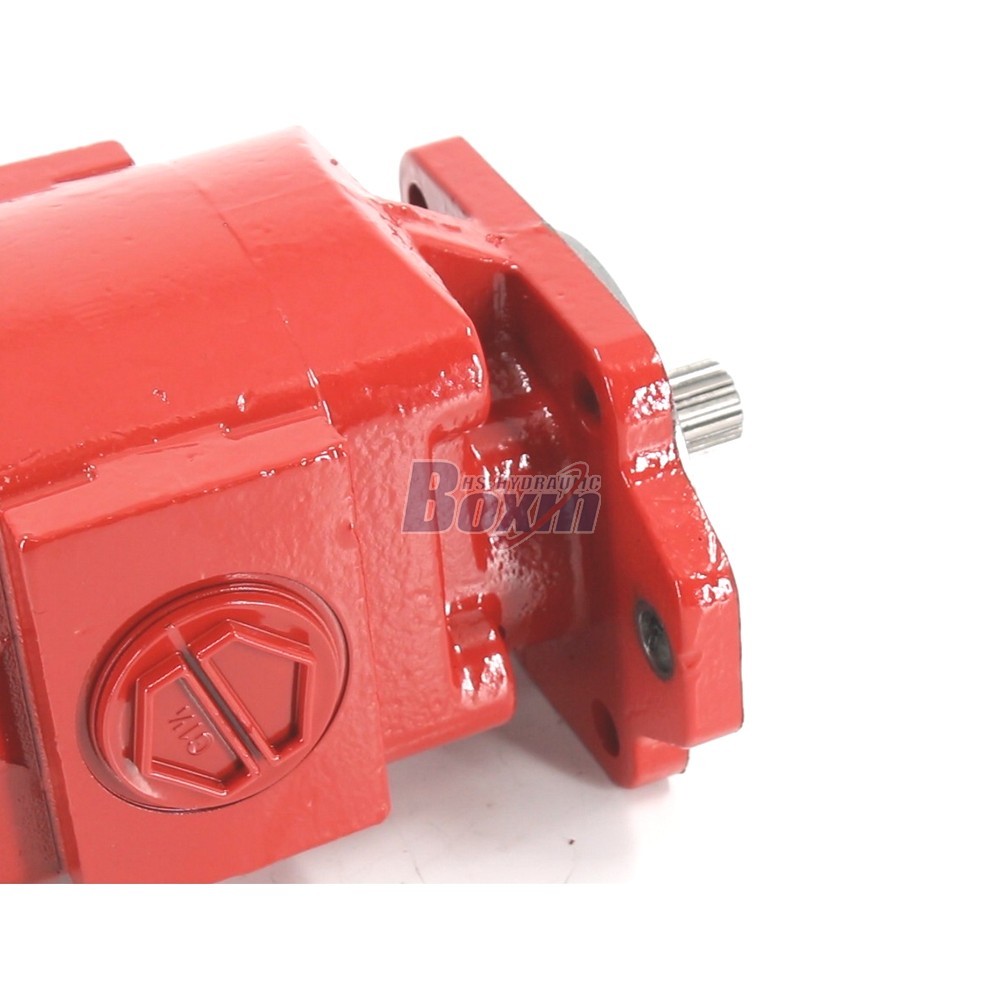

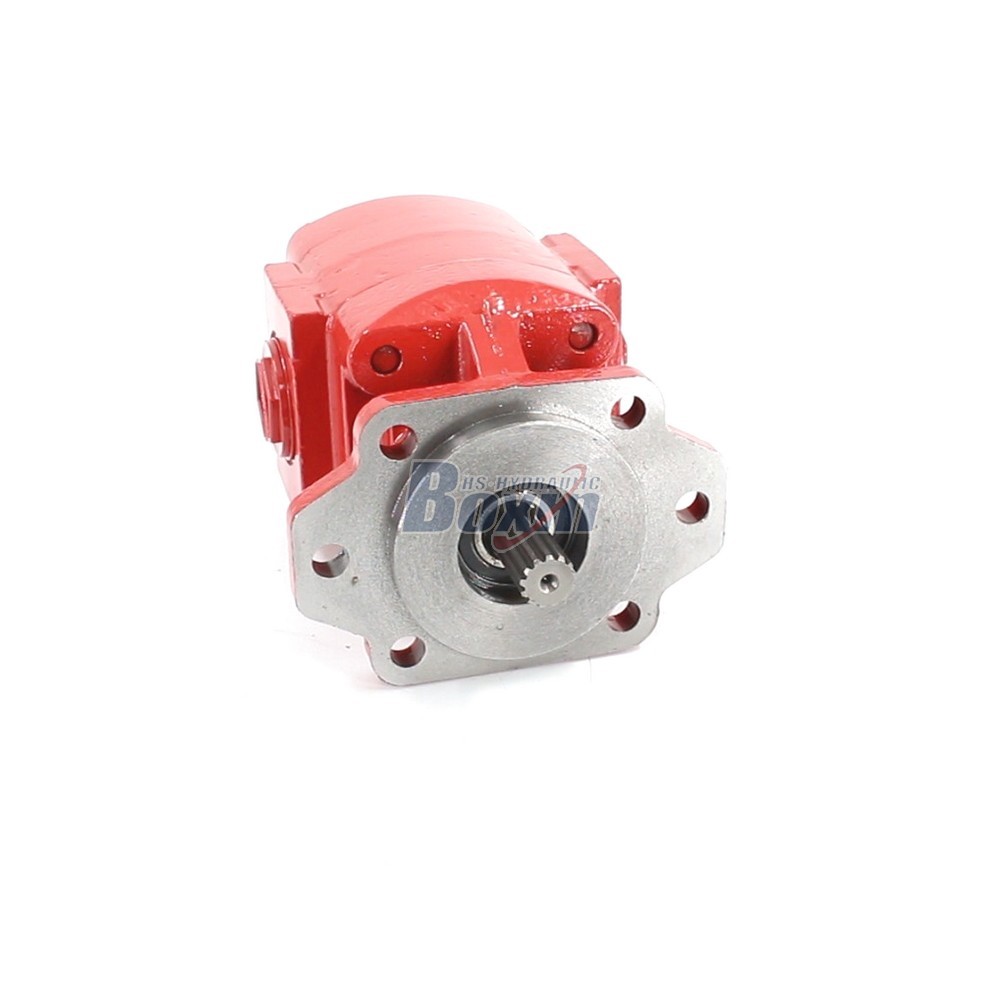

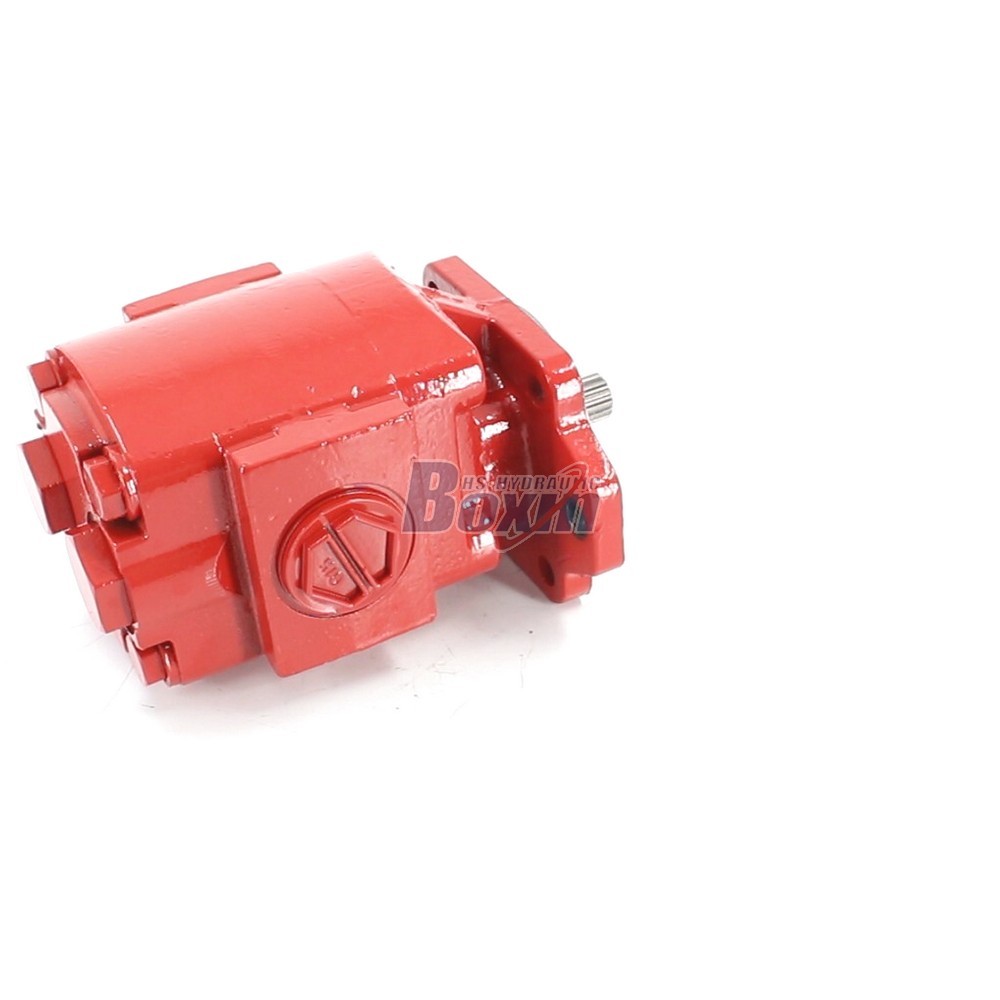

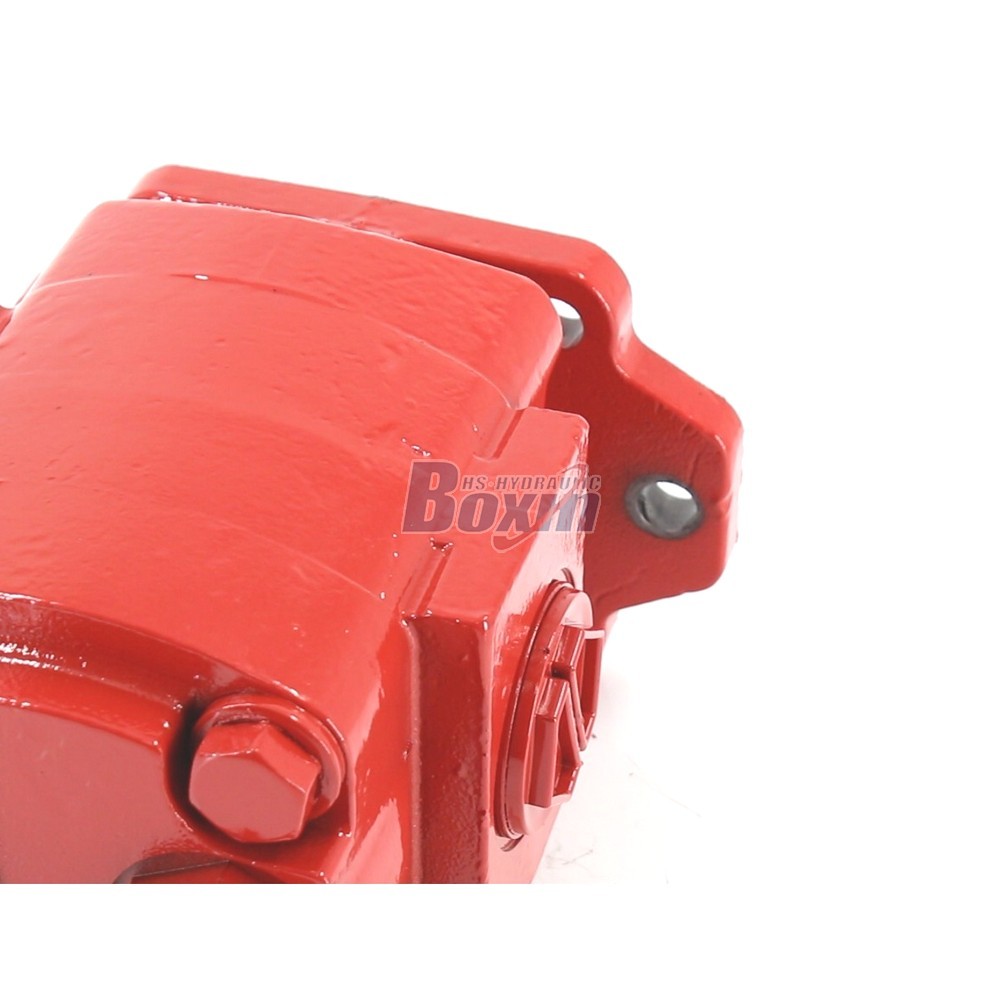

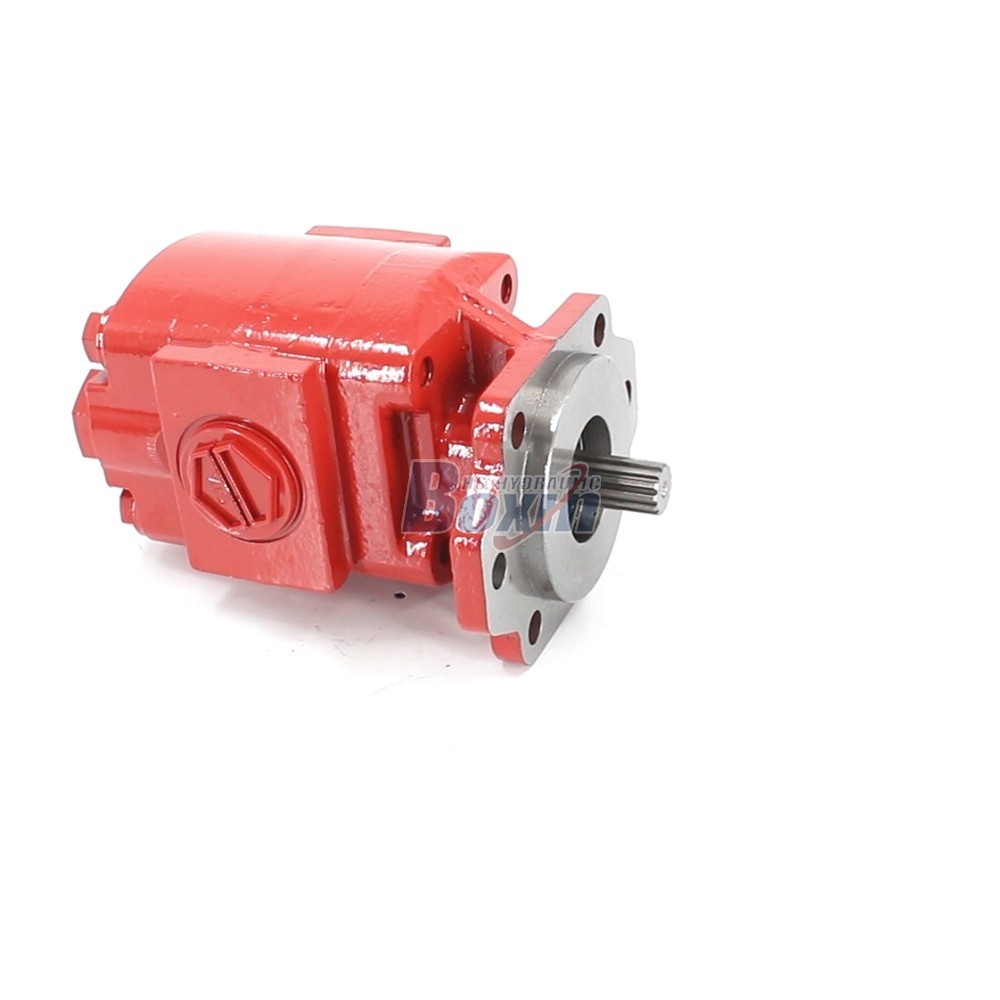

Industrial Grade P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump from Factory

Industrial Grade P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump from Factory

Industrial Grade P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump from Factory drawing image

This Industrial Grade P21A646JEAL20-25-H Hydraulic Gear Pump features a 64.6 cc/rev displacement and handles up to 17 MPa (2465 psi) max pressure at 2200 r/min. Manufactured by a 25-year IATF 16949 certified factory, it offers bidirectional rotation and seamless compatibility with forklifts, loaders, and agricultural machinery.

Dòng P21 Bơm bánh răng thủy lực Tham số
Dung tích 64.6 cc/vòng
Áp suất định mức Áp suất 16 MPa (2320 psi)
Áp suất tối đa Áp suất 17 MPa (2465 psi)
Tốc độ định mức 600 vòng/phút
Tốc độ tối đa 2400 vòng/phút
Chiều quay Hai chiều
Vật liệu Gang đúc
Cấu trúc Bơm bánh răng ngoài
Phiên bản mặt bích A-Bích bầu dục, B-Bích vuông, ISO-4 Lỗ bắt bu lông, UNI-3 Lỗ bắt bu lông, Đầu nối SAE
Loại trục X: Rãnh then cong

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise flow with 64.6 cc/rev displacement, operating at rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa (2465 psi).
- Supports bidirectional rotation with rated speed of 2000 r/min and max speed of 2200 r/min, ensuring stable power transmission for heavy-duty applications.

**2. Versatile P21 Series Gear Pump Applications**
- Engineered for Material Handling, Construction, and Agriculture sectors, perfectly fitting Forklifts, Telehandlers, Skid Steer Loaders, and Backhoe Loaders.
- Compatible with Compact Wheel Loaders, Tractors, Sprayers, Sweepers, and Waste Compactors, providing reliable hydraulic power across diverse industrial vehicles.

**3. Professional Manufacturer Quality Assurance**
- Backed by 25+ years of expertise and IATF 16949 certification, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Utilizes 260+ vertical machining centers and strict oil cleanliness detection, ensuring CE compliance and SGS verified durability for long service life.

**4. Customizable OEM Hydraulic Gear Pump Solutions**
- Supported by 35+ senior engineers, we offer full OEM/ODM services including custom appearance, casting modifications, and laser logo branding.
- Ideal for distributors seeking Private Label options, our factory provides flexible customization to match specific host machine requirements and market preferences.

**5. Factory Direct Sales & Global Supply Capability**
- As a Wholesale China Factory with 68,000 sqm facility and 1.5 million annual capacity, we ensure timely delivery and competitive pricing for bulk orders.
- Products feature anti-rust treatment and heavy-duty wooden crate packaging, making us a trusted Exported Worldwide partner for stable and secure logistics.
