Sản xuất & Giao hàng
Thời gian sản xuất 15-30 ngày

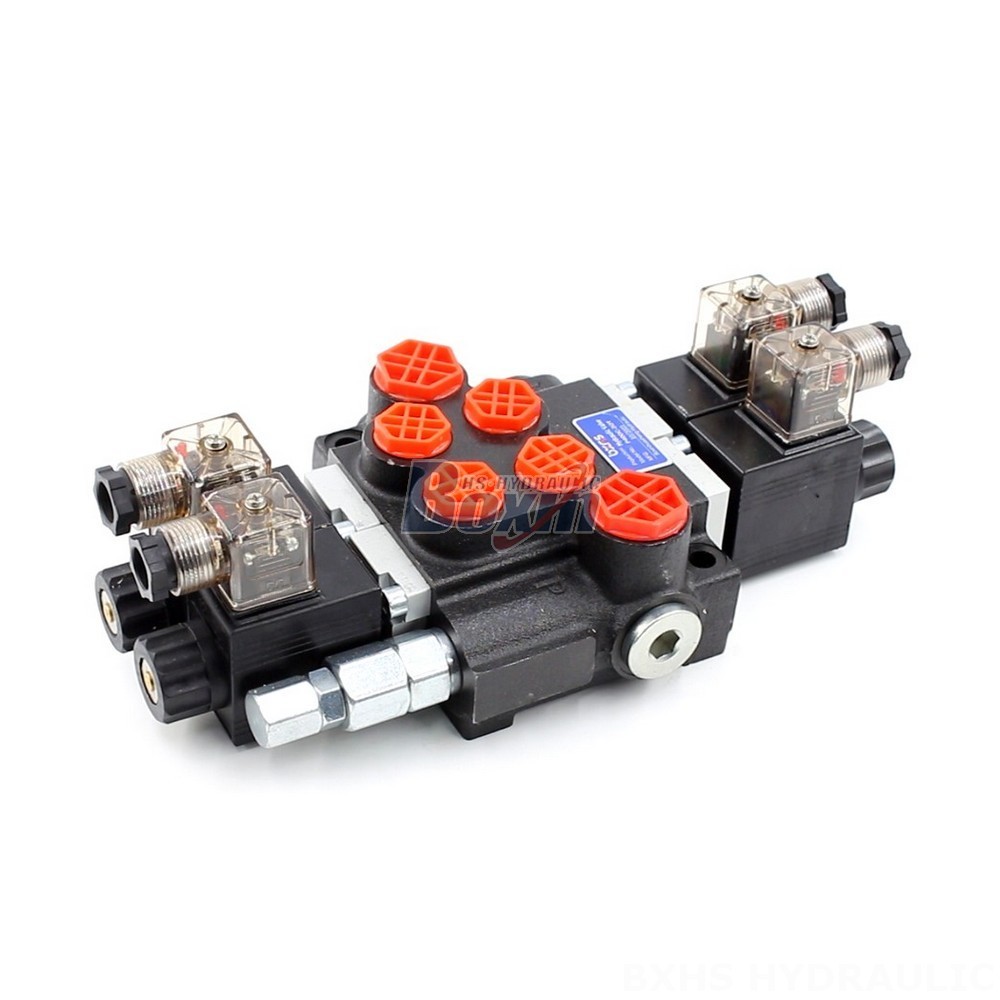

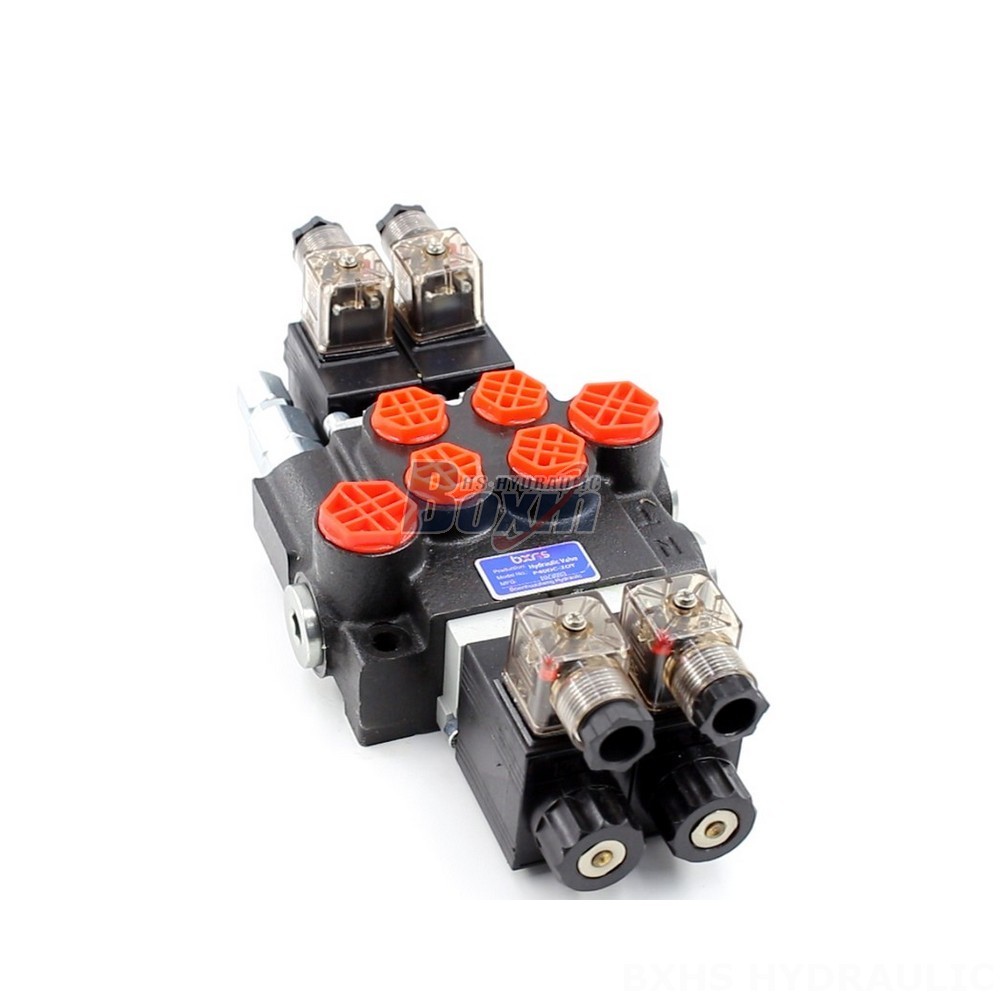

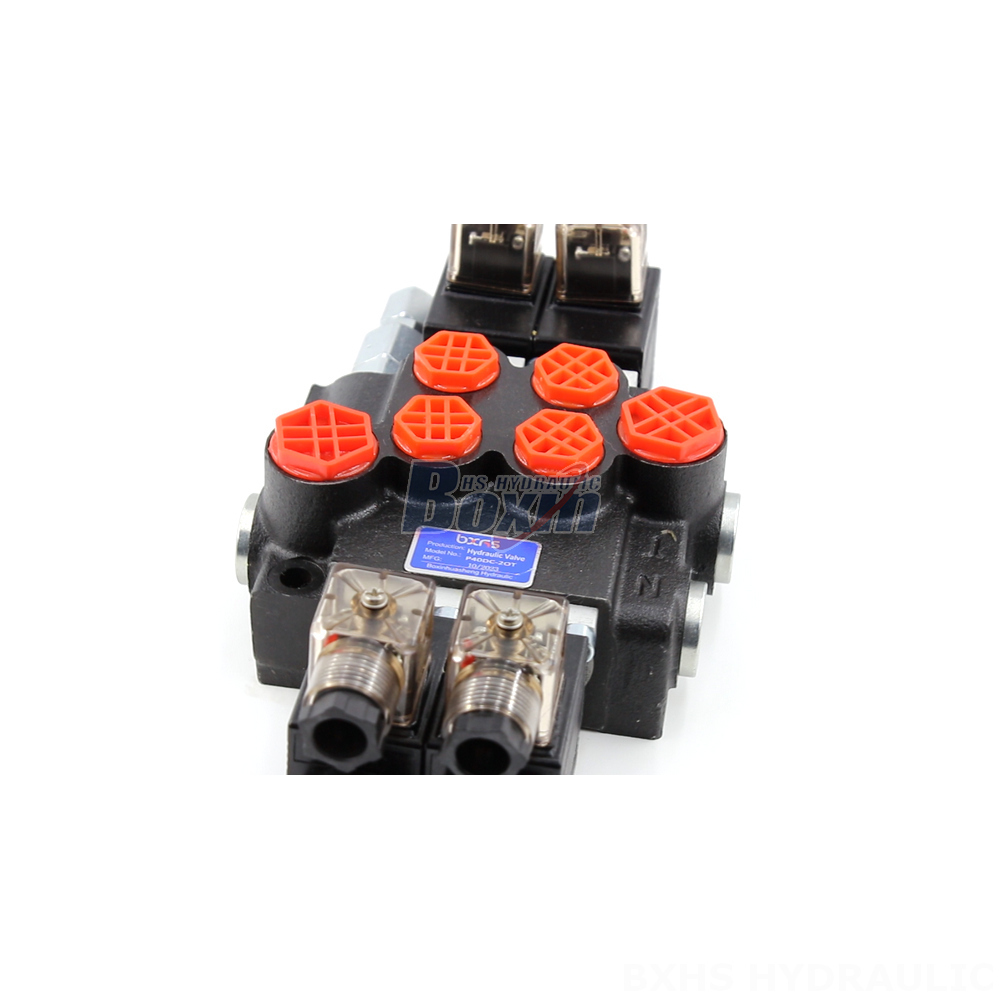

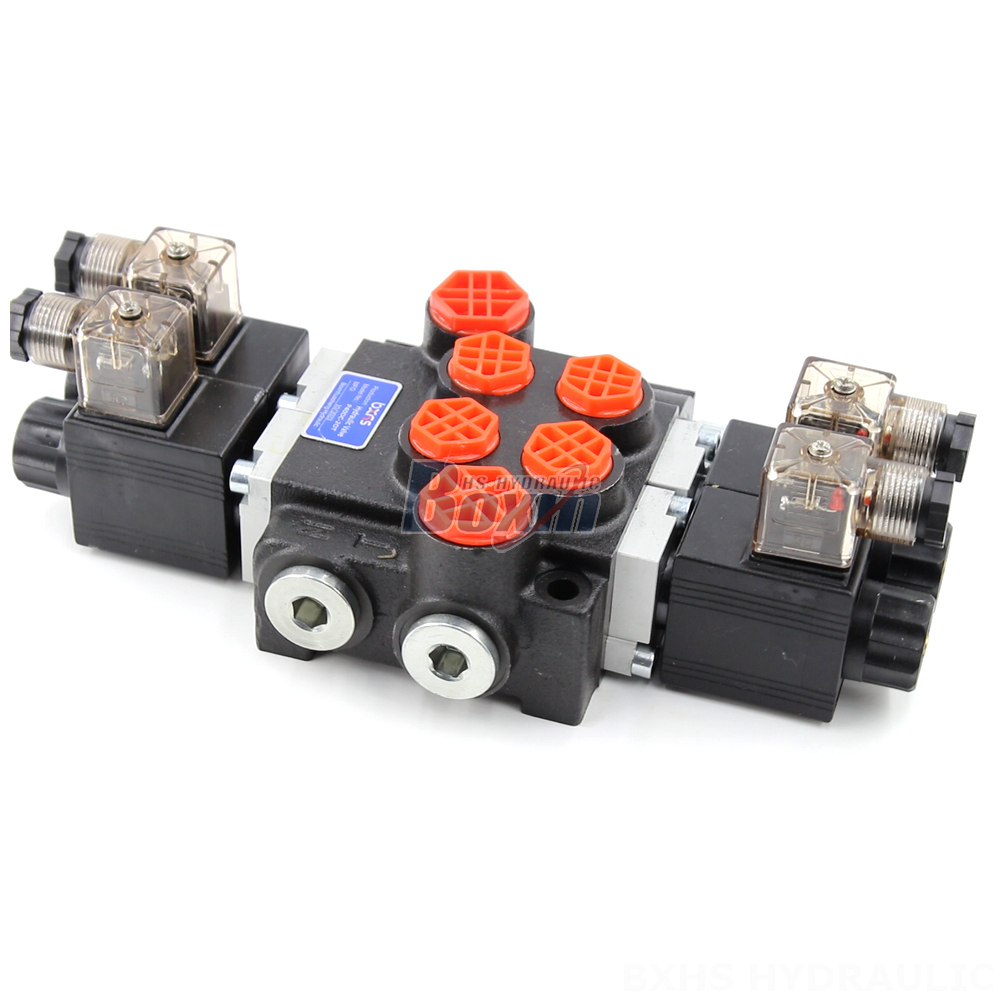

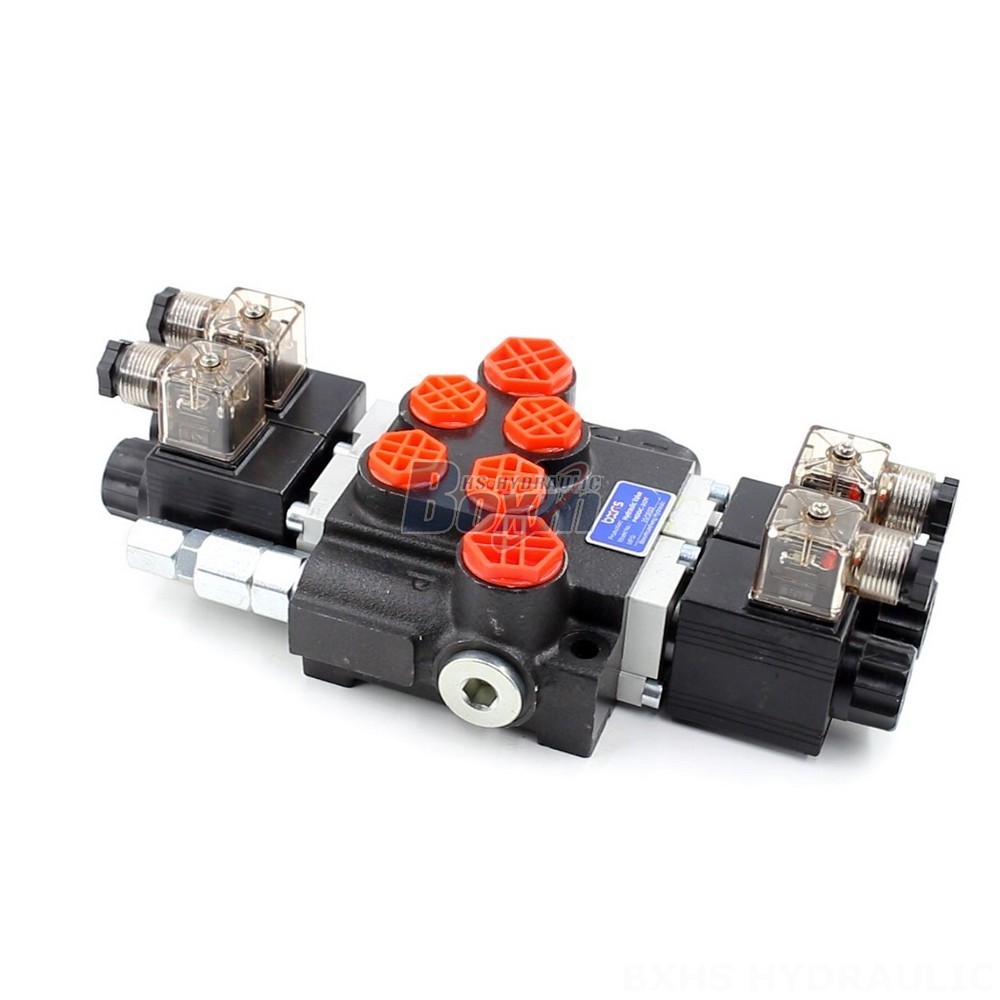

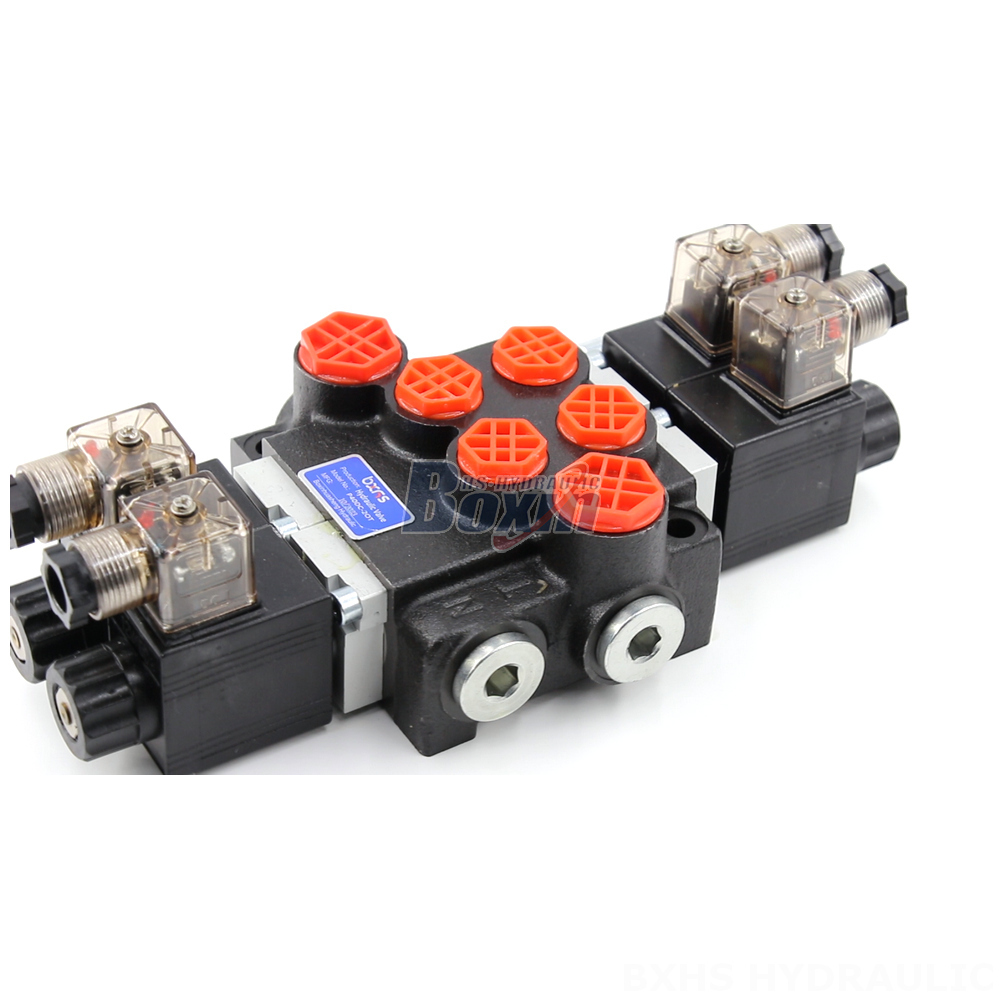

The P40 Series 2 Spool Monoblock Directional Valve is a high-performance solenoid-controlled hydraulic valve designed for demanding applications in material handling, construction, and agriculture. It features a robust design, high flow rate, and wide operating temperature range.
| Dòng P40 Van điều hướng Tham số | |
|---|---|
| Phương pháp điều khiển | Điều khiển thủ công, Khí nén, Điện khí-khí nén, Điện khí-thủy lực, Biến áp, Thủy lực, Thủy lực và thủ công, Cáp, Tay điều khiển, Biến áp và tay điều khiển, Thủ công và tay điều khiển, Nam châm điện (Solenoid) và Cáp điều khiển |
| Xy lanh | 1 ống, 2 ống, 3 ống, 4 ống, 5 ống, 6 cuộn, 7 ống |
| Phạm vi nhiệt độ môi trường xung quanh | -40°C đến +80°C (-40°F đến +176°F) |
| Loại cấu trúc | Van liền khối |
| Phần | Phần 1, Phần 2, Phần 3, Phần 4, Phần 5, Phần 6, Phần 7 |
| Phạm vi độ nhớt hoạt động | 15 - 75 mm²/giây (15 cSt đến 75 cSt) |
| Lưu lượng định mức | 40 L/phút (10.5 US gpm) |
| Áp suất tối đa | 250 bar (3600 psi) |
| Cổng vào | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Cổng ra | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Kích thước cổng | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series 2 Spool Monoblock Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications. It features a compact monoblock design, two spools for versatile operation, and a solenoid control method for precise actuation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle demanding hydraulic loads. Its wide operating temperature range from -40°C to +80°C ensures reliable performance in various environments. This valve is ideal for applications in material handling, construction, and agriculture, particularly in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
