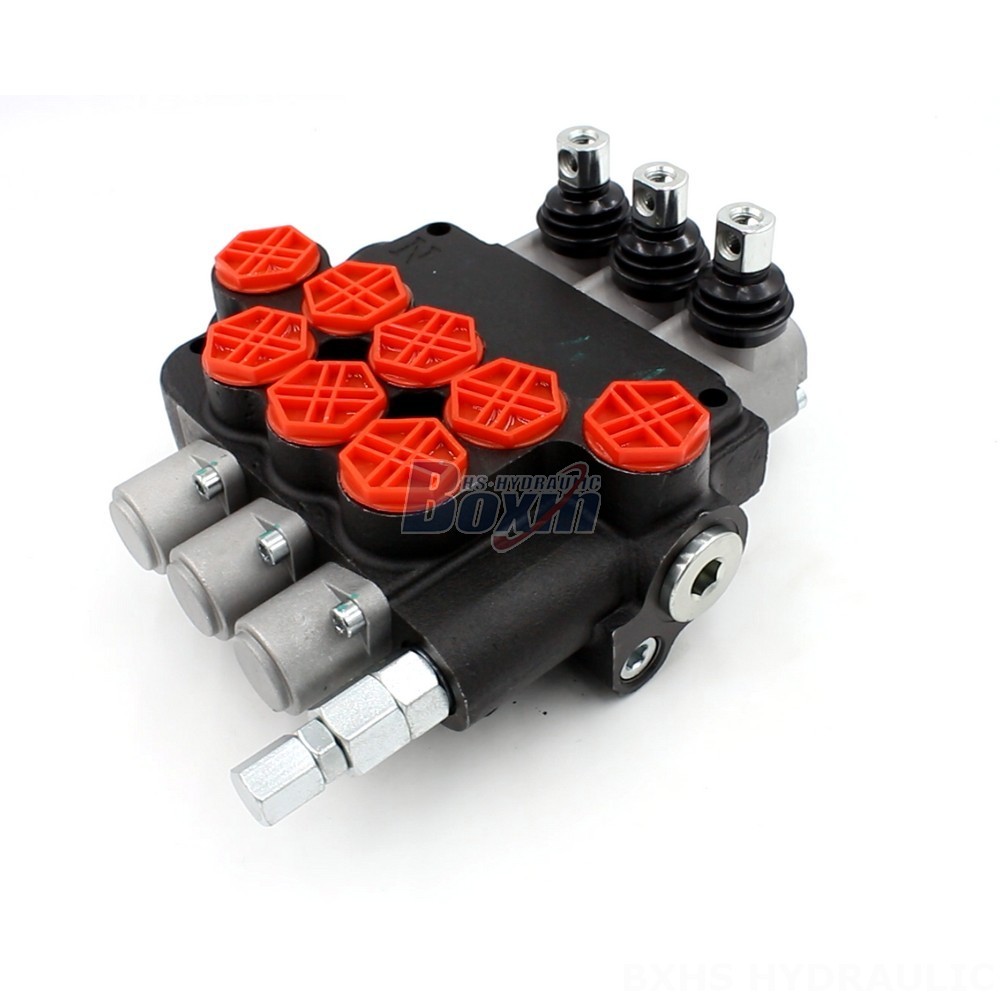

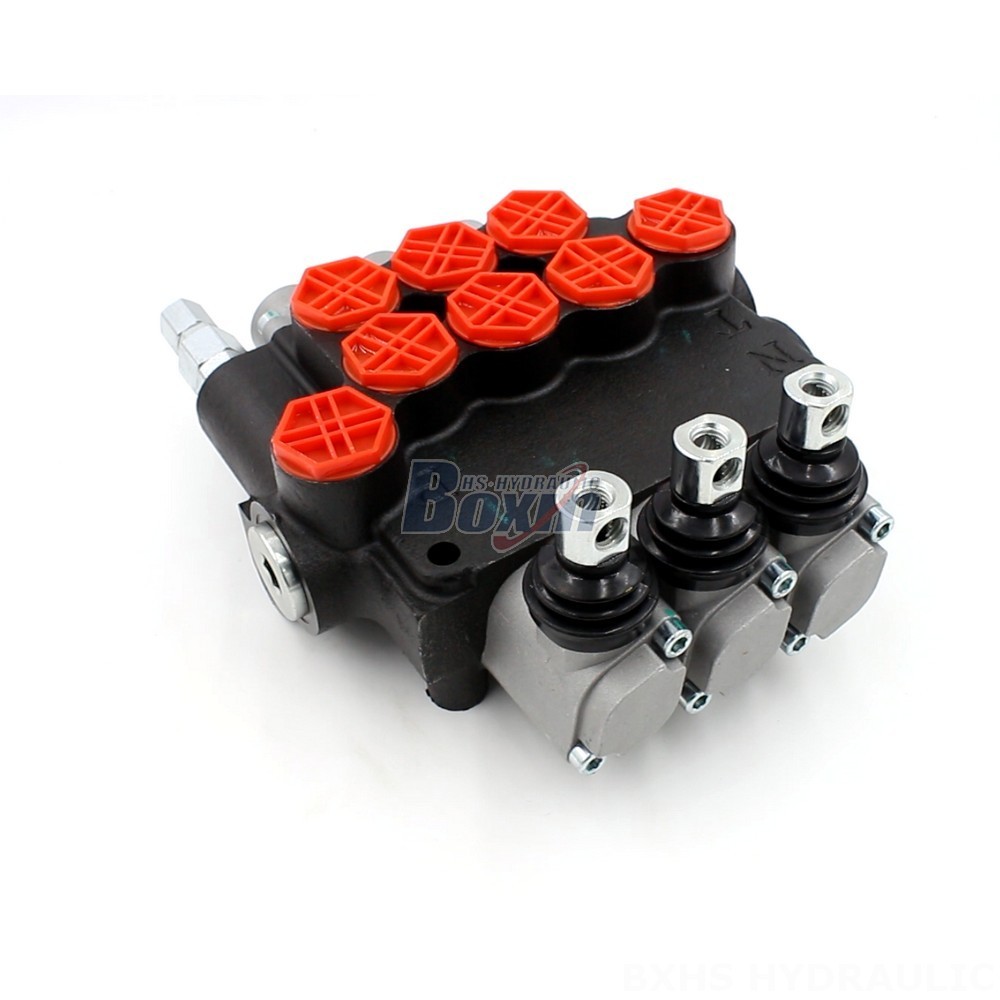

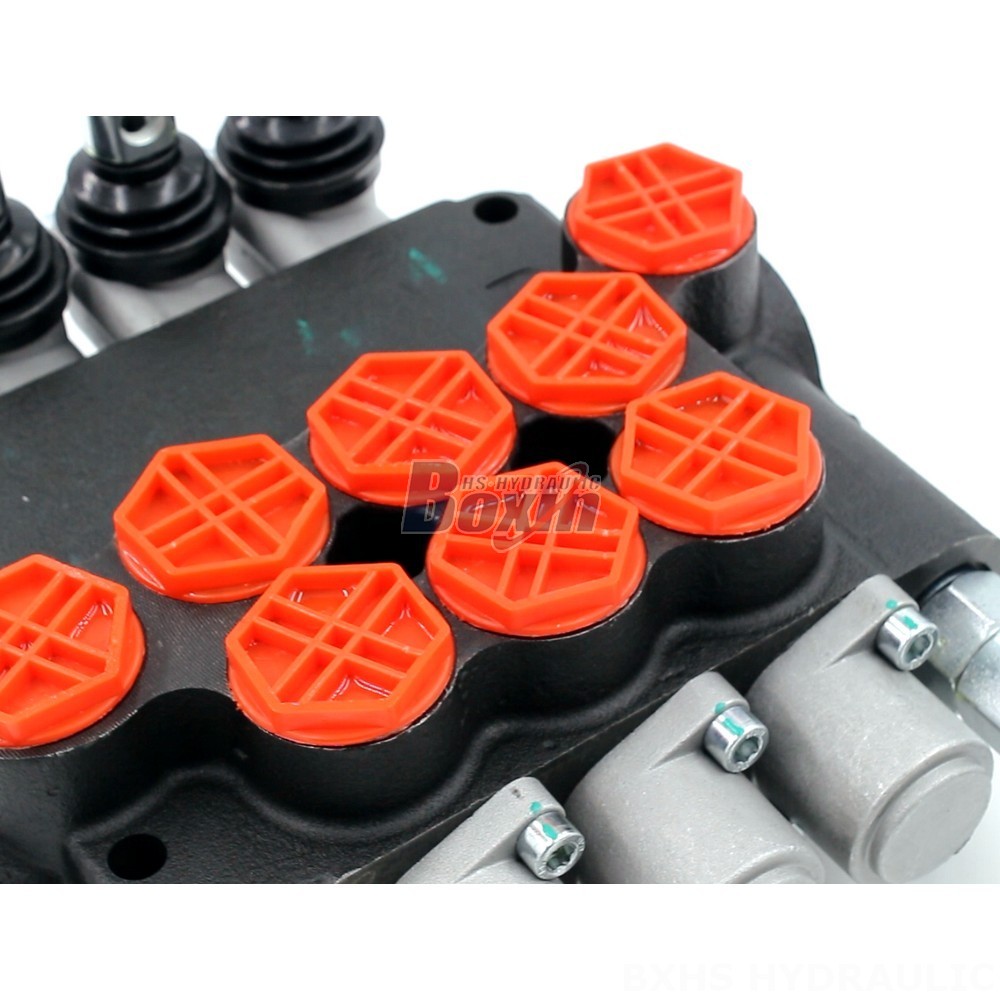

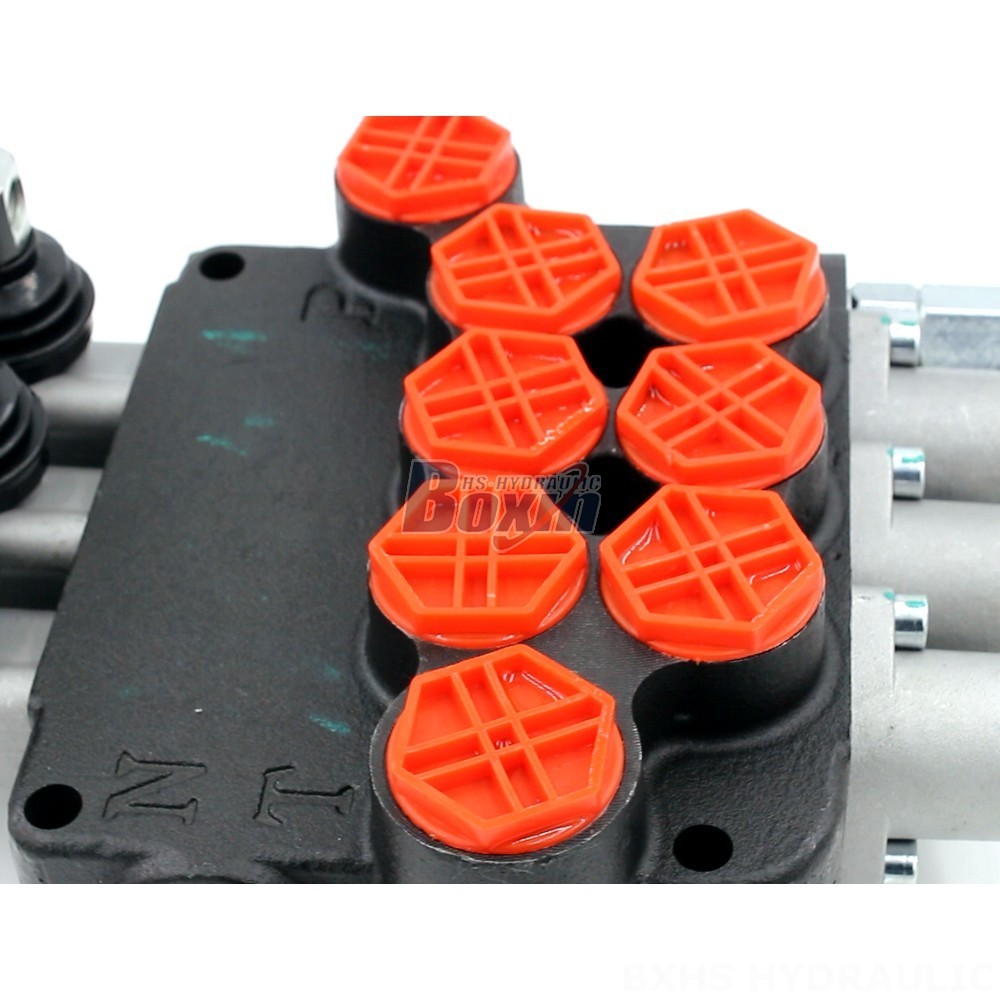

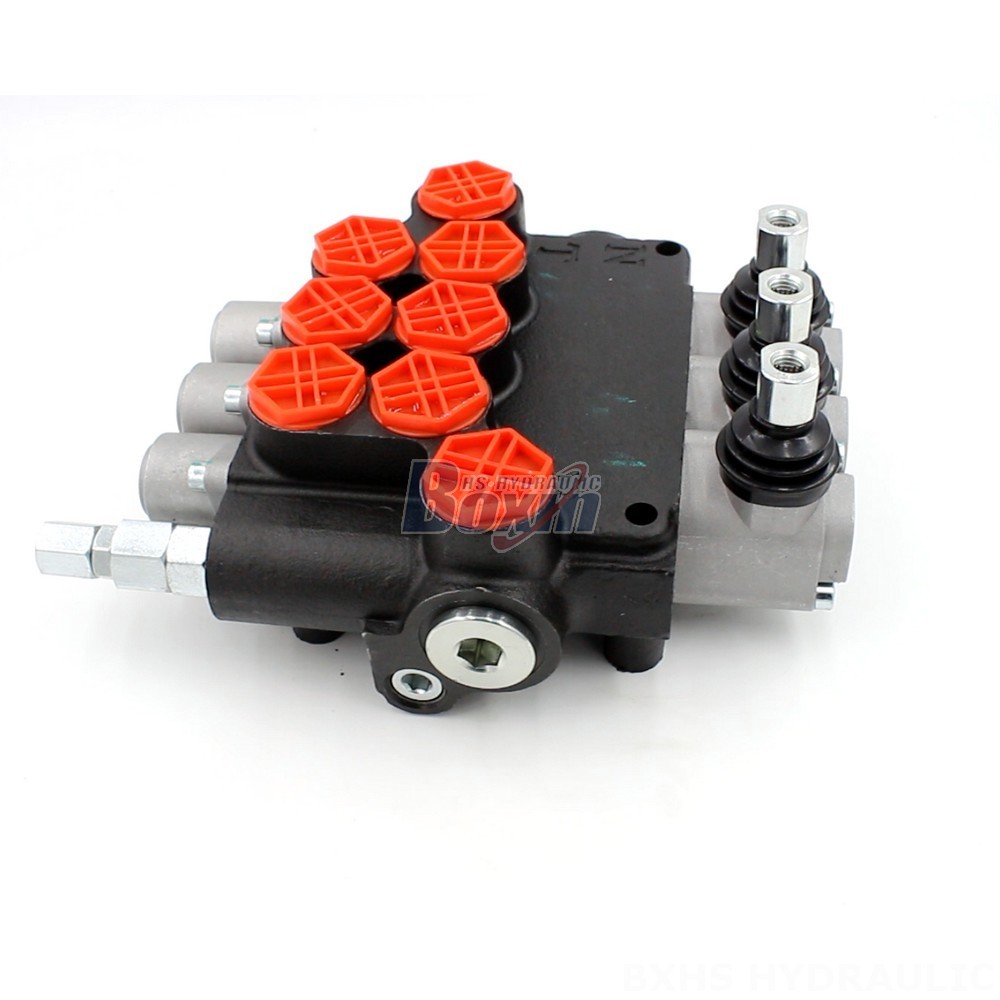

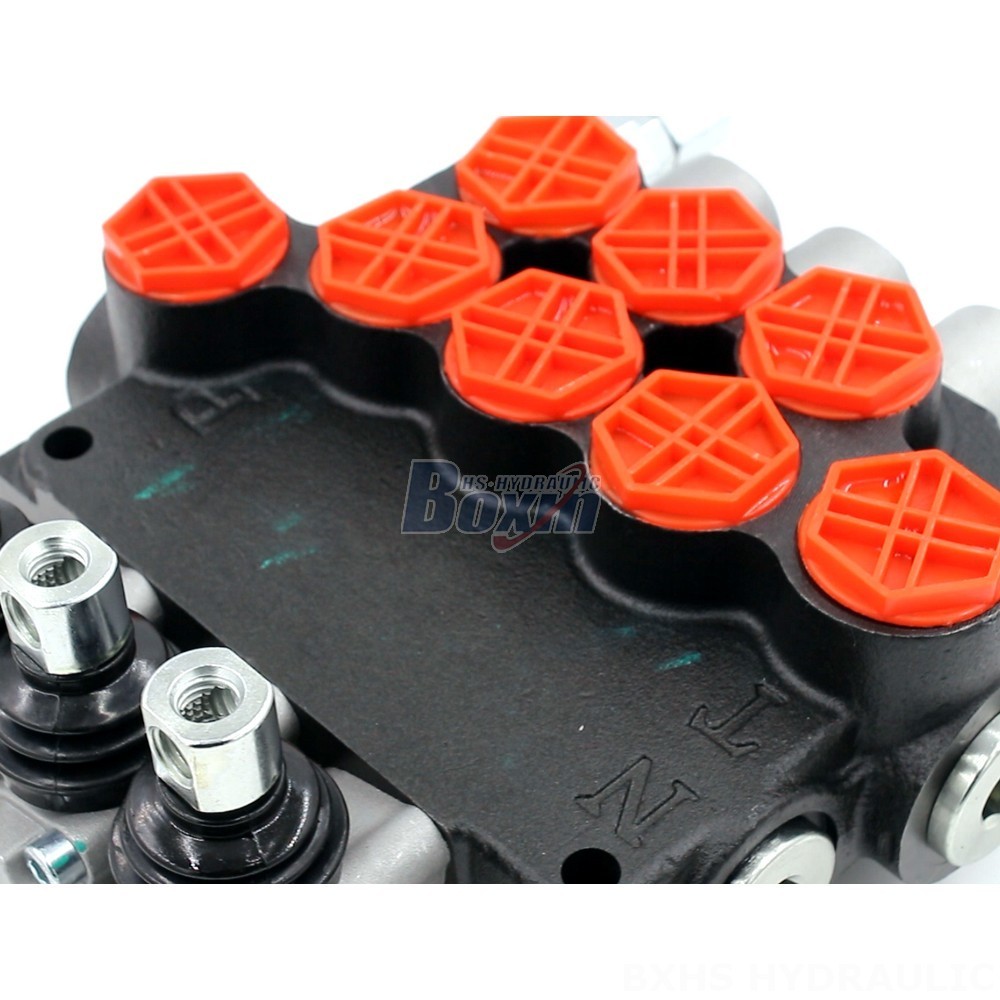

Hydraulic Directional Control Valve

Phương pháp điều khiển:Điều khiển thủ công

Xy lanh:3 ống

Lưu lượng định mức:80 L/phút (21.2 US gpm)

Áp suất tối đa:250 bar (3600 psi)

Cổng vào:G3/4

Cổng ra:G3/4

Kích thước cổng:G3/4

Thương hiệu:BXHS

Loại sản phẩm:Van điều hướng

Dòng sản phẩm:Dòng P80 Van điều hướng

Kích thước bao bì:26*23*11

Tổng trọng lượng:10.70 kg

Tình trạng hàng: Còn hàng

1093 Lượt xem tìm kiếm sản phẩm này

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve drawing image

This high-performance P80 Series Electro Pneumatic Directional Control Valve is a 3-section monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable control for a wide range of equipment.

Dòng P80 Van điều hướng Tham số
Phương pháp điều khiển Điều khiển thủ công, Khí nén, Điện khí-khí nén, Điện khí-thủy lực, Biến áp, Thủy lực, Thủy lực và thủ công, Cáp, Tay điều khiển, Thủ công và tay điều khiển
Xy lanh 1 ống, 2 ống, 3 ống, 4 ống, 5 ống, 6 cuộn, 7 ống
Phạm vi nhiệt độ môi trường xung quanh -40°C đến +80°C (-40°F đến +176°F)
Loại cấu trúc Van liền khối
Phần Phần 1, Phần 2, Phần 3, Phần 4, Phần 5, Phần 6, Phần 7
Phạm vi độ nhớt hoạt động 15 - 75 mm²/giây (15 cSt đến 75 cSt)
Lưu lượng định mức 80 L/phút (21.2 US gpm)
Áp suất tối đa 315 bar (4600 psi)
Cổng vào G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Cổng ra G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Kích thước cổng G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series Electro Pneumatic Directional Control Valve is a robust and efficient solution for demanding hydraulic applications. Its monoblock structure provides durability and reliability, while the manual control method allows for easy operation. This 3-section valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers. Its operating viscosity range of 15-75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse environments. The P80 Series valve is engineered for long-lasting performance and minimal maintenance requirements, providing a cost-effective and reliable hydraulic control solution.
