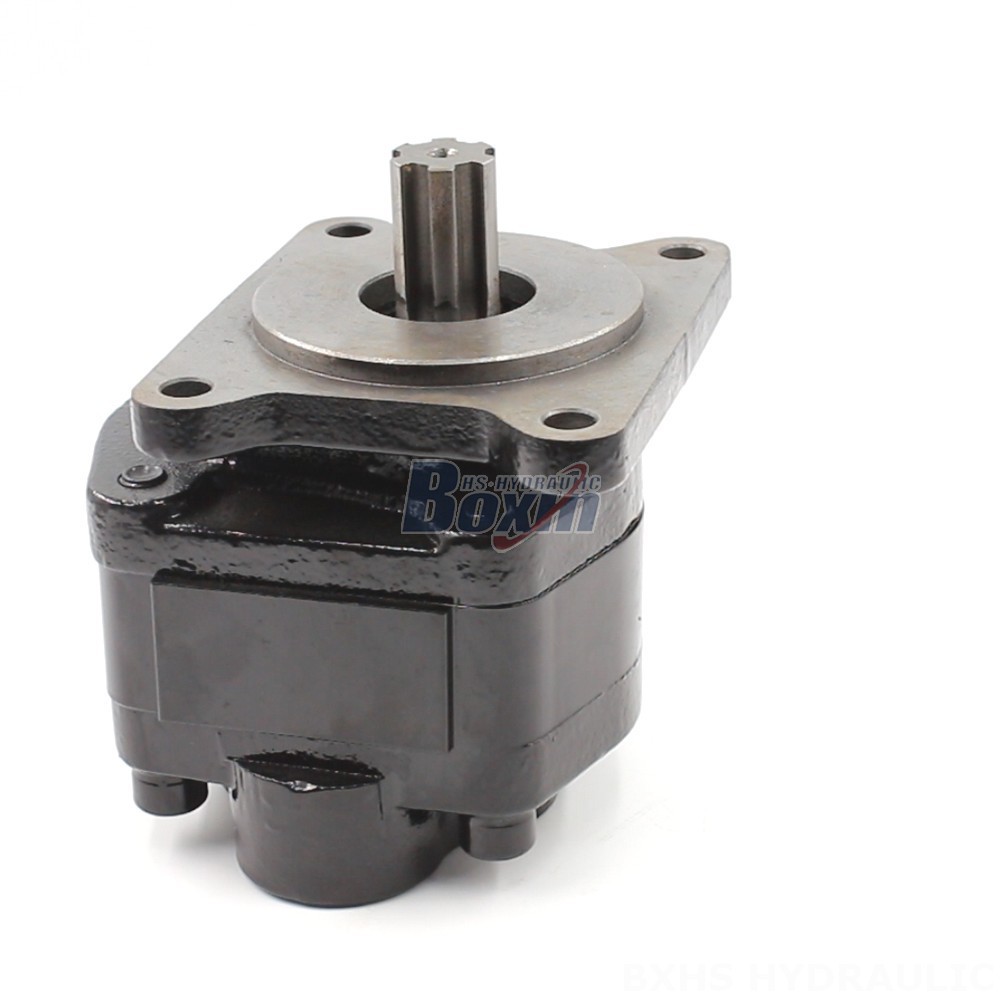

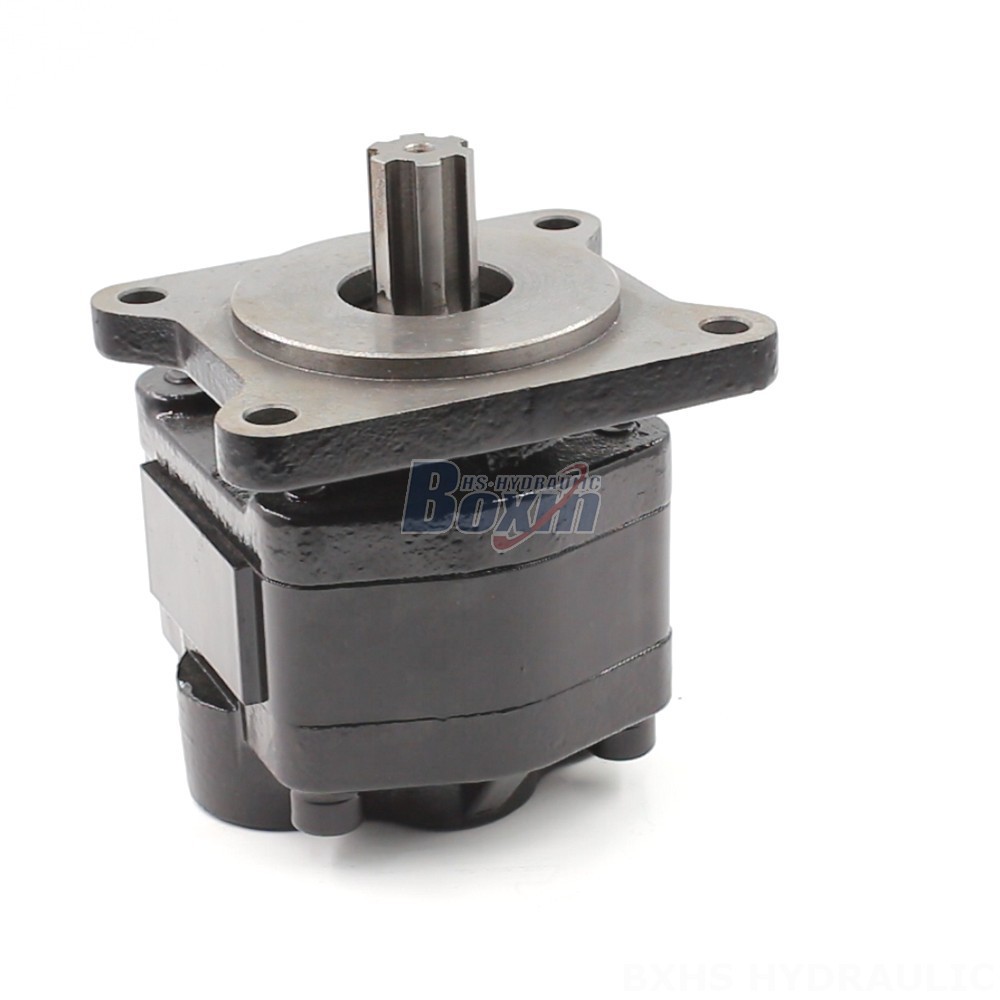

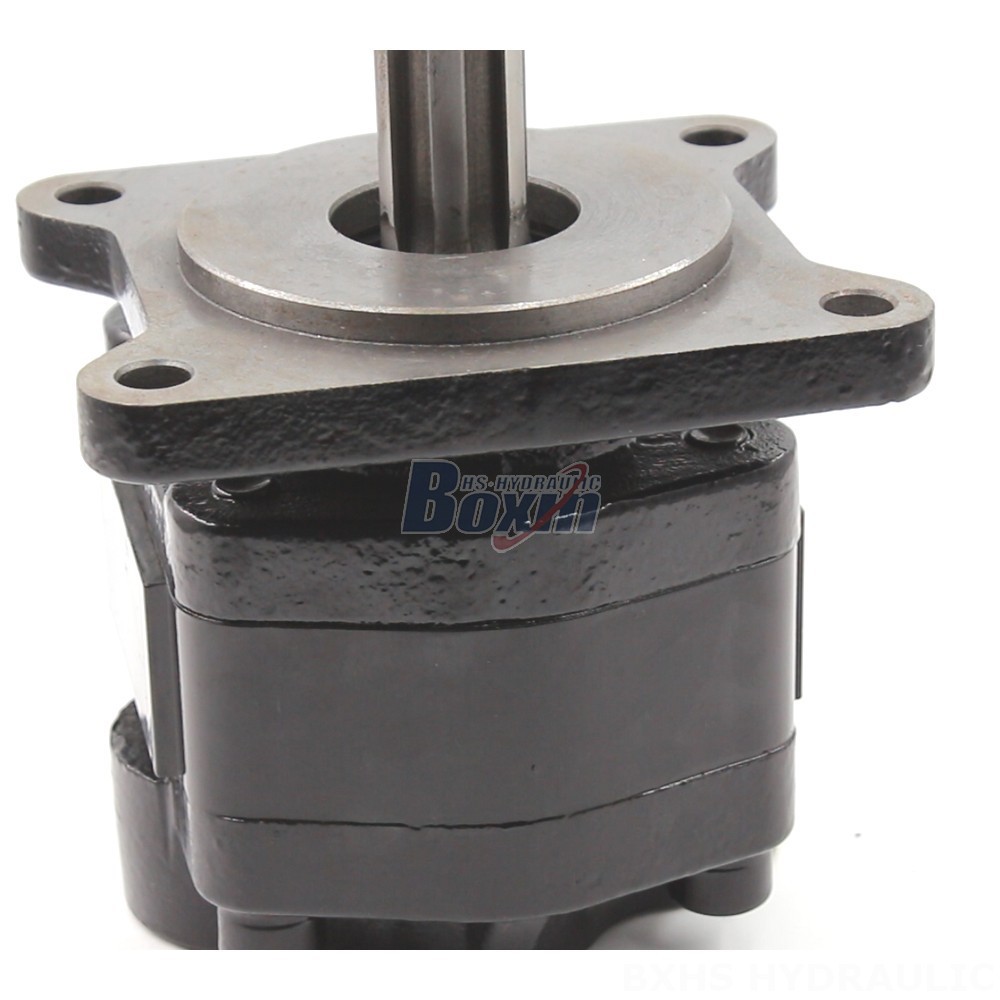

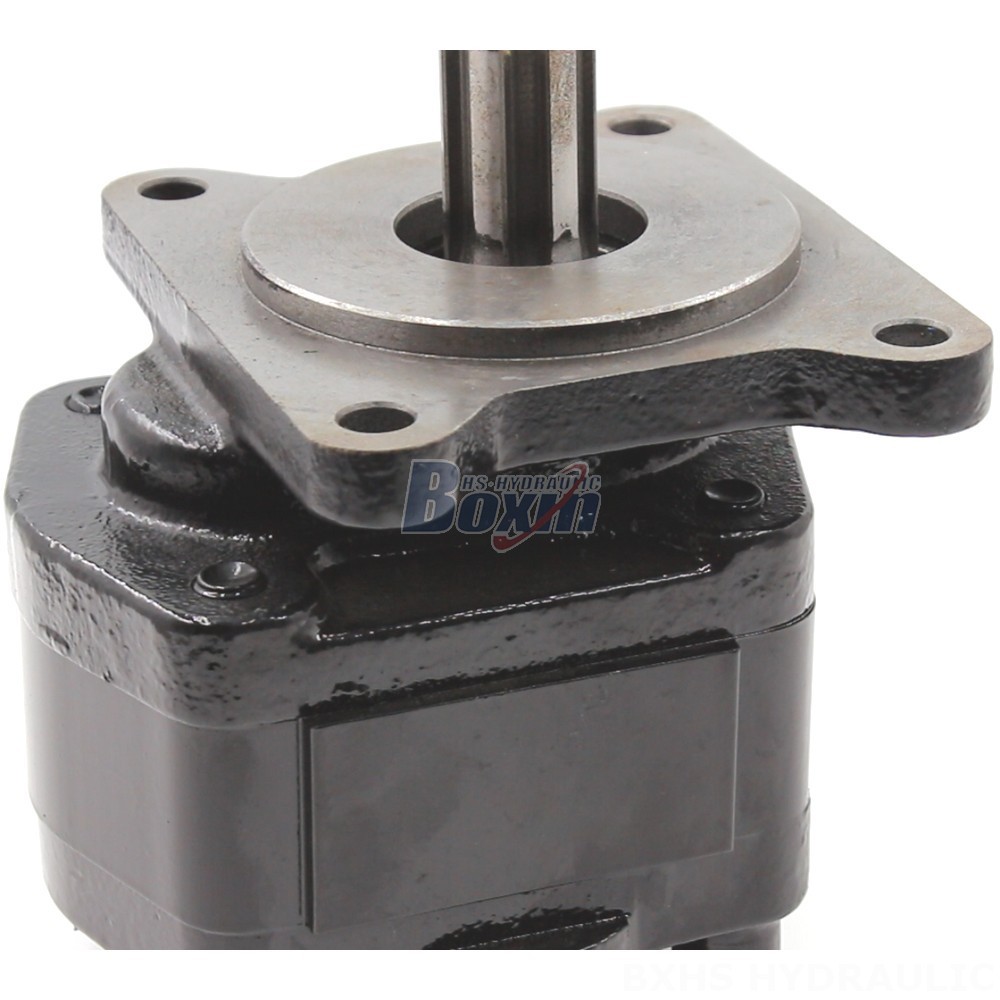

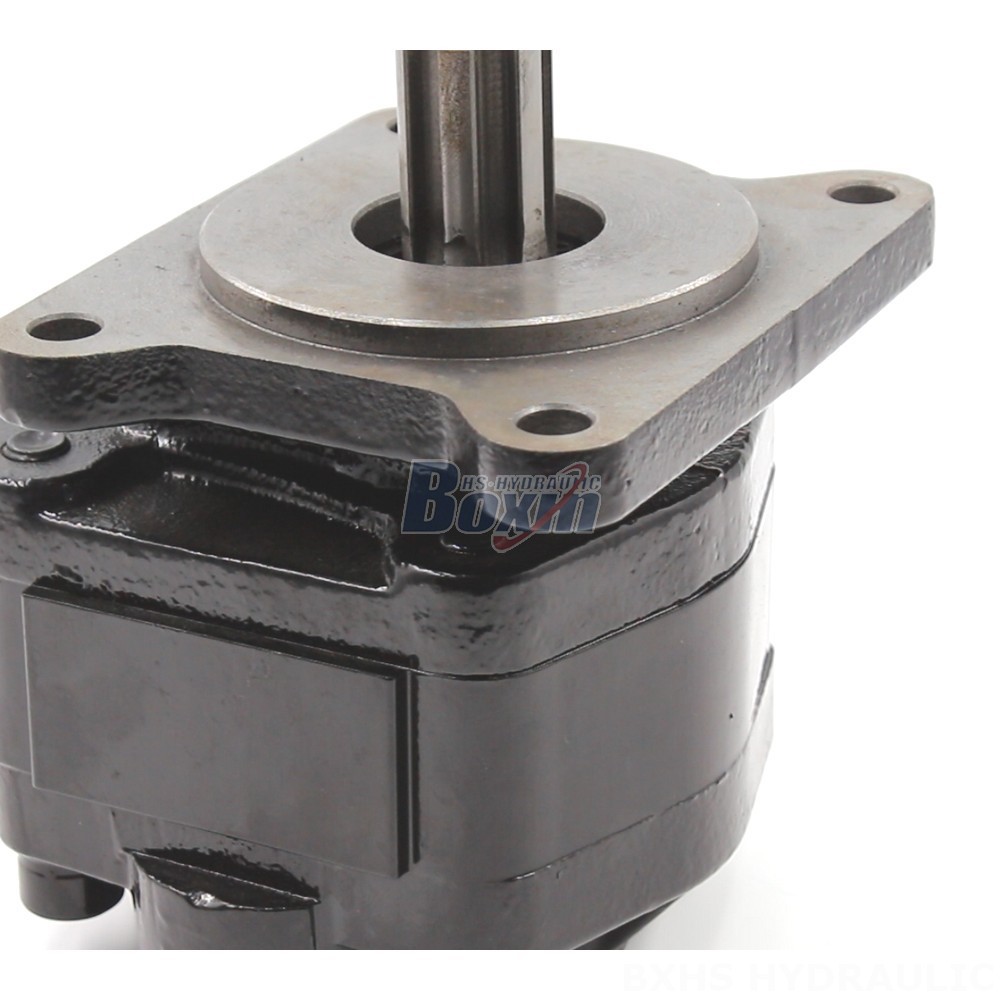

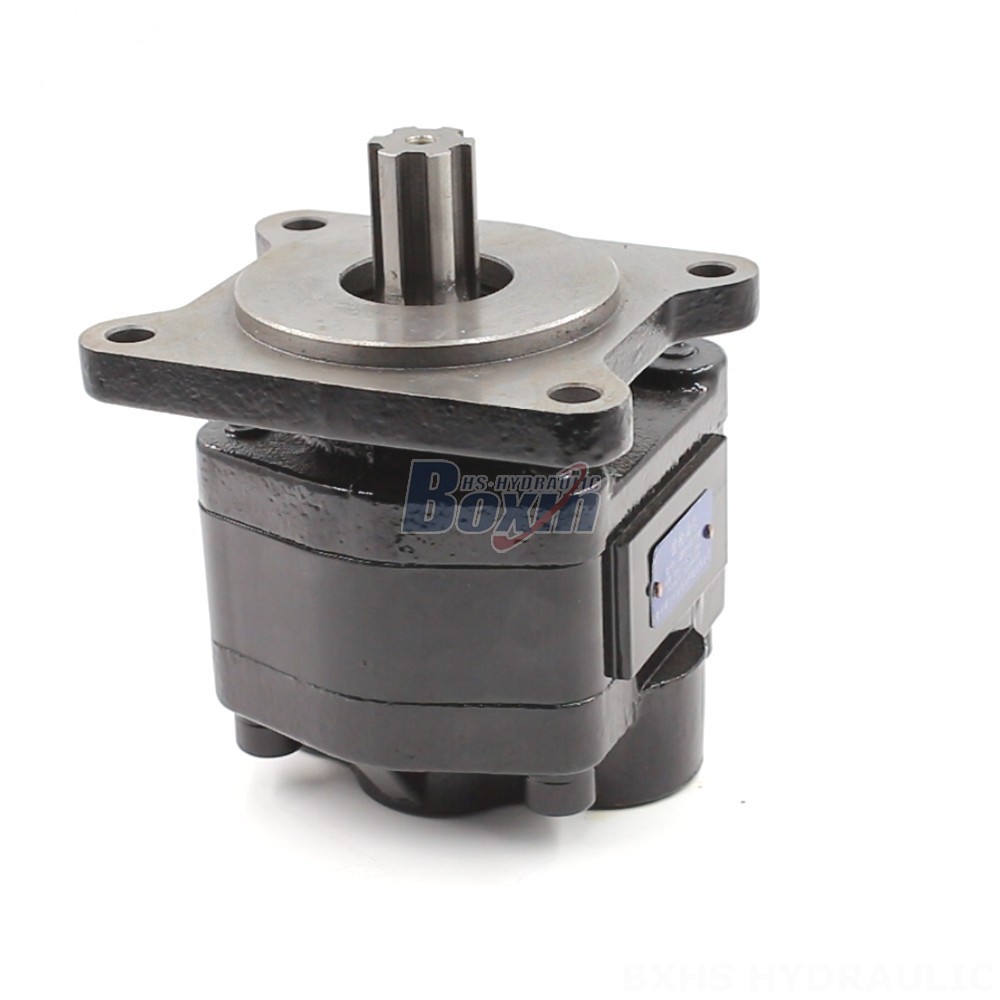

This product is a 20 cc/rev hydraulic gear pump, available in various displacements (32 cc/rev, 50 cc/rev, 63 cc/rev) and shaft types (Plain Key, Rectangle Spline, Involute Spline). It's designed for heavy-duty applications in various industries like material handling, construction, agriculture, and industrial vehicles.
| Dòng Máy Bơm Bánh Răng CBHS-F5 Bơm bánh răng thủy lực Tham số | |
|---|---|
| Dung tích | 32 cc/vòng, 50 cc/vòng, 63 cc/vòng, 20 cc/vòng |
| Áp suất định mức | Áp suất 20 MPa (2900 psi) |
| Áp suất tối đa | Áp suất 25 MPa (3625 psi) |
| Tốc độ định mức | 2000 vòng/phút |
| Tốc độ tối đa | 2500 vòng/phút |
| Chiều quay | L: Trái (ngược chiều kim đồng hồ), R: Phải (cùng chiều kim đồng hồ) |
| Vật liệu | Gang đúc |
| Cấu trúc | Bơm bánh răng ngoài |
| Phiên bản mặt bích | B-Bích vuông |
| Loại trục | H: Rãnh then hình chữ nhật, X: Rãnh then cong, P: Khóa trơn |
The CBHS-F5 Series 20 cc/rev hydraulic gear pump is a robust and reliable power source for various machinery. Featuring a cast iron construction, B-Square flange, and a rated pressure of 20 MPa (2900 psi), this pump delivers high performance and durability. It is available in three displacement options (32 cc/rev, 50 cc/rev, 63 cc/rev) to suit diverse application requirements. Choose from different shaft types (Plain Key, Rectangle Spline, Involute Spline) for compatibility with your existing system. This pump is ideal for use in material handling equipment like forklifts and telehandlers, construction and earth moving machines such as mini-excavators, midi-excavators, skid steer loaders, and compact wheel loaders, as well as agricultural machinery like tractors and harvesters.
